Neith Metals is a reputable manufacturer and supplier located in Cairo, Egypt, focusing on top-notch Aluminium 2024 T3511 Bars and Rods. With a strong dedication to engineering excellence and ensuring customer satisfaction, Neith Metals provides reliable and durable aluminium products designed to meet the needs of various industries. Renowned for their precision manufacturing and commitment to international standards, the company offers Aluminium 2024 T3511 in a variety of sizes and specifications, catering to aerospace, automotive, and industrial applications. Neith Metals guarantees exceptional performance, competitive pricing, and timely delivery, making them a go-to partner for aluminium solutions in Egypt and beyond.
Aluminium 2024 T3511 Bars and Rods are primarily made up of aluminium (over 90%), along with important alloying elements like copper (3.8–4.9%), manganese (0.3–0.9%), and magnesium (1.2–1.8%). This specific blend boosts strength and fatigue resistance. The T3511 temper indicates that the material has undergone stress relief through stretching and minimal cold working. Its mechanical properties include a tensile strength of about 470 MPa, yield strength around 325 MPa, and good machinability. While it may not resist corrosion as well as some other aluminium alloys, its outstanding mechanical performance makes it a great choice for structural components that face high stress.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

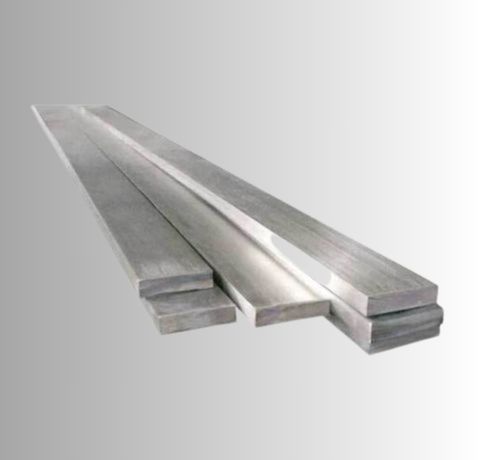

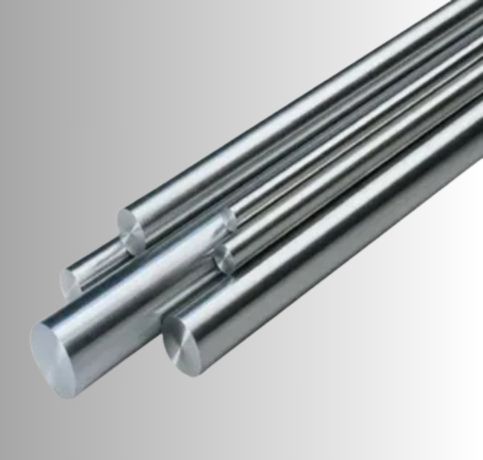

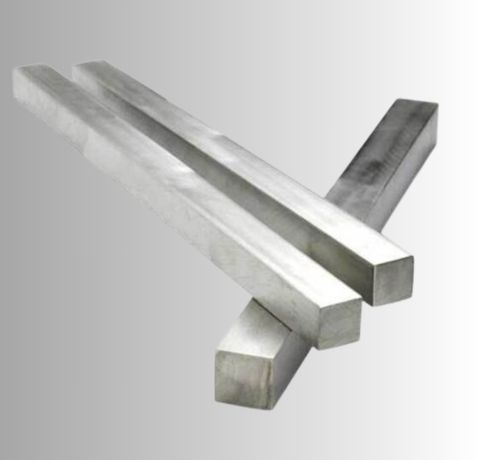

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 T3511 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Aluminium 2024 T3511 is generally not recommended for welding due to its susceptibility to cracking and reduced strength after welding. However, specialized techniques like TIG welding and using filler materials can be employed with caution.
Yes, Aluminium 2024 T3511 bars are recyclable. Aluminium is highly recyclable without losing quality, making it an eco-friendly material for sustainable manufacturing and reducing environmental impact.
Aluminium 2024 T3511 is prone to corrosion, particularly in harsh environments with high humidity or exposure to saltwater. It is highly susceptible to pitting and stress corrosion cracking, though protective coatings can help mitigate this.
Aluminium 2024 T3511 Bars and Rods find extensive use in industries where a high strength-to-weight ratio and fatigue resistance are essential. In aerospace, they are utilized in fuselage structures, wing tension members, and landing gear components. The automotive industry employs them for high-performance parts like suspension systems and engine components. They are also used in military applications, transport equipment, and precision-machined parts. Although they aren’t ideal for corrosive environments without surface treatment, their strength and stability under stress make Aluminium 2024 T3511 Bars and Rods a dependable option for demanding engineering and structural applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
