Neith Metals is a reputable manufacturer and supplier located in Cairo, Egypt, known for its top-notch carbon steel products, particularly the well-regarded Carbon Steel EN-8 Bars. With a solid track record of reliability, precision, and customer satisfaction, Neith Metals caters to a variety of industrial sectors, providing materials that adhere to international standards. The company skillfully blends modern manufacturing methods with strict quality control to produce durable, high-performance steel bars. Whether serving local or global clients, Neith Metals offers customized solutions to address diverse engineering and construction needs, establishing itself as a leading name in Egypt’s metal industry for carbon steel products.
Carbon Steel EN-8 Bars are medium-strength steel products characterized by a balanced composition that includes around 0.36–0.44% carbon, 0.60–1.00% manganese, along with trace elements like silicon, sulfur, and phosphorus. Renowned for their impressive tensile strength and wear resistance, these bars typically showcase a tensile strength ranging from 550–800 MPa and a yield strength of about 450 MPa. They also provide good machinability and moderate weldability. When heat-treated, EN-8 bars enhance their toughness and hardness, making them perfect for components that demand strength, durability, and dimensional stability under mechanical stress.
| Grades | EN 8, EN 19, EN 24, EN 31 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

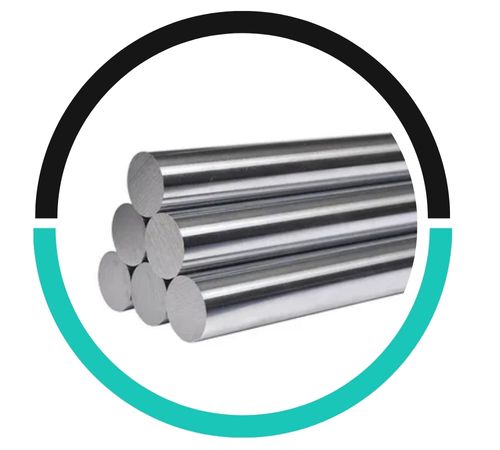

| Carbon Steel EN Series Round Bars | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Carbon Steel EN Series Hex Bars | AF5.8mm–17mm |

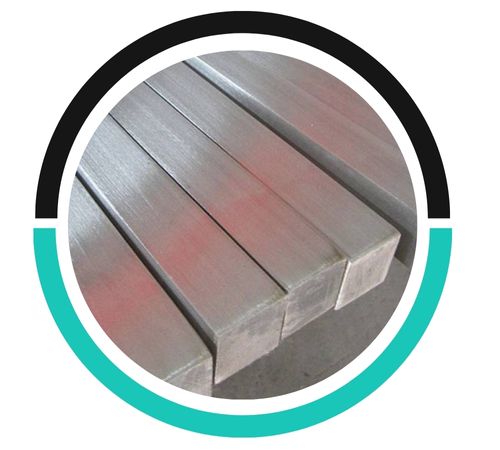

| Carbon Steel EN Series Square Bars | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |

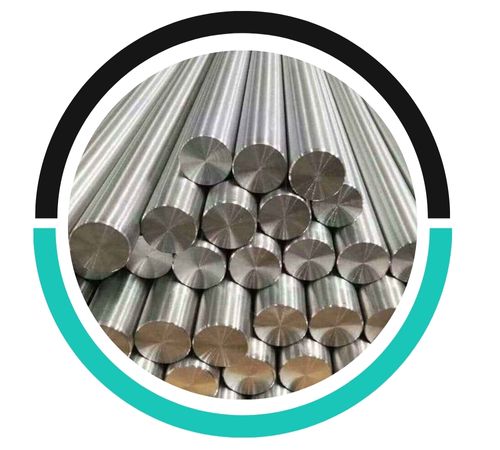

| Finish | Bright, Polish & Black |

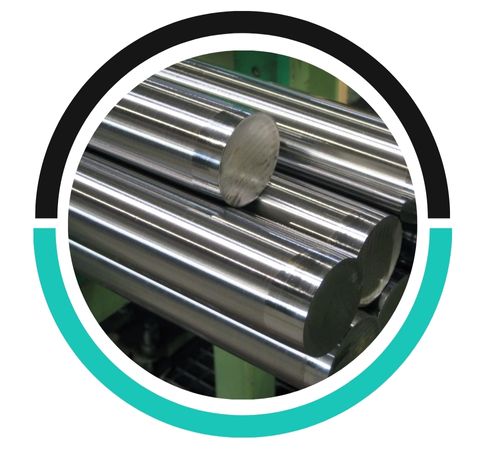

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Annealed | R | S | T | U | V | W | Y | |
|---|---|---|---|---|---|---|---|---|
| Ruling Section (mm) | 150 | 150 | 100 | 65 | 65 | 30 | 30 | 25 |
| Tensile Strength (MPa) | 680/720 | 690/850 | 770/930 | 850/1000 | 930/1080 | 1000/1160 | 1080/1240 | 1280 |
| Yield Stress (MPa) | 440/480 | 480 | 570 | 665 | 740 | 835 | 895 | 1050 |
| Elongation (% Min) | 22 | 15 | 15 | 13 | 12 | 12 | 10 | 10 |
| ISO V Impact (Joule) | 30 | 30 | 30 | 30 | 25 | 25 | 22 | 7 |
| Hardness (Brinell) | 190/210 | 201/255 | 223/277 | 248/302 | 269/321 | 293/341 | 311/375 | 363/415 |
| Proof Stress (0.2%) if required (MPa, Min) | 495 | 550 | 630 | 710 | 770 | 850 | 985 |
| Standard | CS EN-19 |
| UNS | – |
| WERKSTOFF NR. | 42Cr4Mo2 |
| BS | 709M40 |
| IS | 40Cr4Mo3 |
| JIS | – |
| EN | EN19 |
| SAE/AISI | 4140,4142 |
They offer high tensile strength, wear resistance, and excellent machinability, making them suitable for demanding applications.
They are widely used in automotive, engineering, and heavy machinery industries for components like gears, shafts, and bolts.
These Carbon Steel EN-8 Bars find extensive use in industries that require high-performance materials for mechanical and structural applications. Their remarkable tensile strength and toughness make them ideal for crafting shafts, gears, bolts, studs, connecting rods, axles, and various automotive components. In construction, they are utilized for frameworks and load-bearing structures. Additionally, these bars are crucial in producing machine parts and tools that experience moderate wear and stress. The EN-8’s ability to endure mechanical loads without deforming makes it a favored choice in engineering, automotive, agricultural machinery, and heavy equipment manufacturing sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
