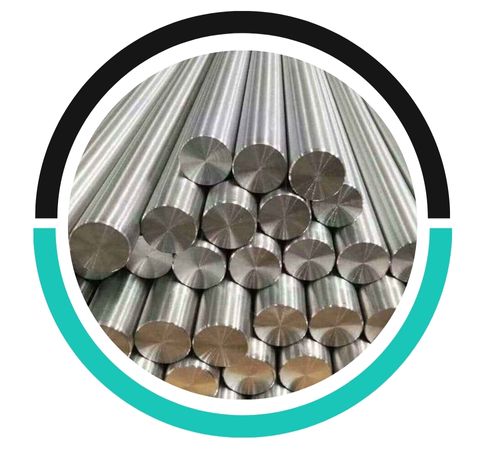

Neith Metals stands out as a top-notch manufacturer and supplier located in Cairo, Egypt, with a focus on crafting high-quality Carbon Steel EN-9 Bars. Driven by a passion for excellence and innovation, Neith Metals provides robust steel solutions designed to meet the diverse needs of various industries. Their EN-9 carbon steel bars are celebrated for their strength, dependability, and precise dimensions. Thanks to cutting-edge manufacturing techniques and rigorous quality control, Neith Metals guarantees that every product aligns with both local and international standards. Being strategically positioned in Cairo enables them to efficiently distribute their products throughout Egypt and into neighboring markets.
Carbon Steel EN-9, often referred to as 070M55, is a medium carbon steel that contains around 0.50–0.60% carbon and 0.70–1.00% manganese, along with small amounts of silicon and sulfur. EN-9 bars boast a tensile strength between 600 to 850 MPa and a Brinell hardness ranging from 201 to 255 HB. This steel offers excellent wear resistance and moderate toughness, and it can be flame or induction hardened to enhance surface hardness. These mechanical properties make EN-9 an excellent choice for components that need more strength than mild steel while still being easy to machine and heat-treat.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |

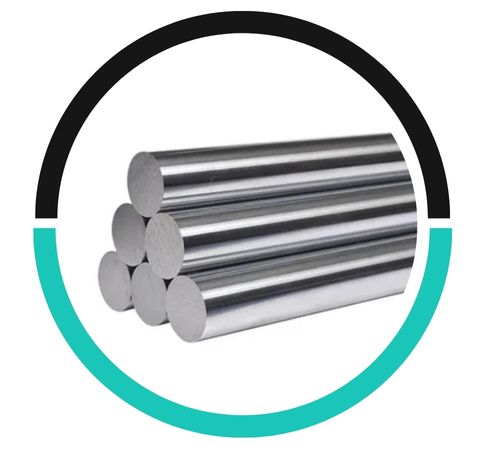

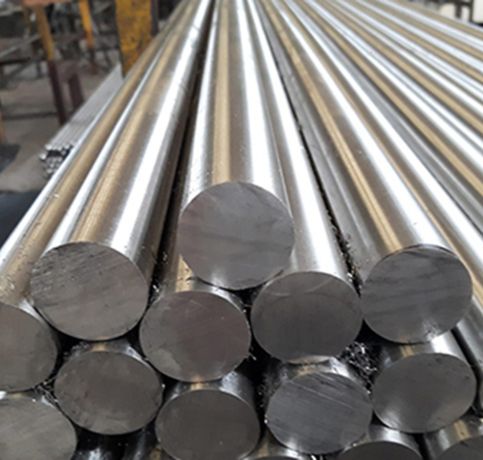

| Round Bar Size | Diameter: 3-~800mm |

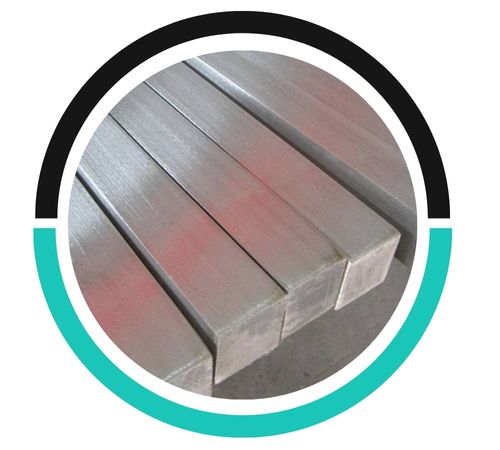

| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

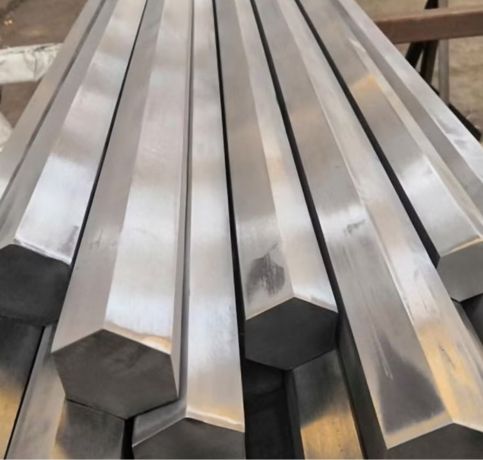

| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

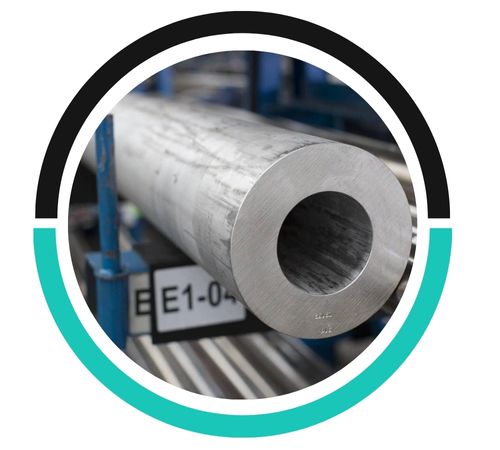

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |

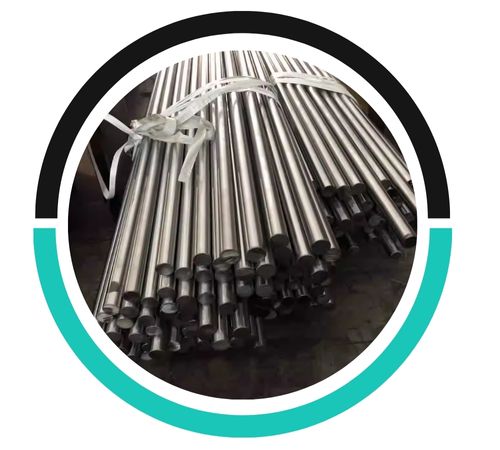

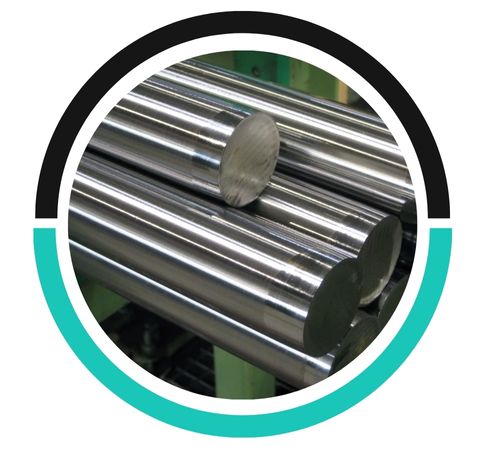

| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Carbon Steel EN-9 is commonly used for manufacturing bolts, nuts, fasteners, and structural components in heavy-duty applications like automotive and construction industries.
EN-9 offers excellent tensile strength, wear resistance, and hardenability, making it suitable for components subjected to mechanical stresses and heavy-duty environments.
Yes, Carbon Steel EN-9 can be heat-treated to enhance its hardness and strength, making it versatile for various engineering applications.
Neith Metals’ Carbon Steel EN-9 Bars are extensively utilized in applications that demand high strength and wear resistance. These bars are perfect for manufacturing shafts, gears, axles, spindles, bolts, and crankshafts, which are commonly used in the automotive, engineering, and mechanical sectors. The machinability and heat treatment compatibility of EN-9 make it ideal for moderate-duty components that experience rotational or impact stress. Additionally, it’s employed in agricultural machinery, industrial tools, and various machinery parts. The material’s durability and performance under pressure make it a reliable choice for a wide array of demanding applications, both locally and globally.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
