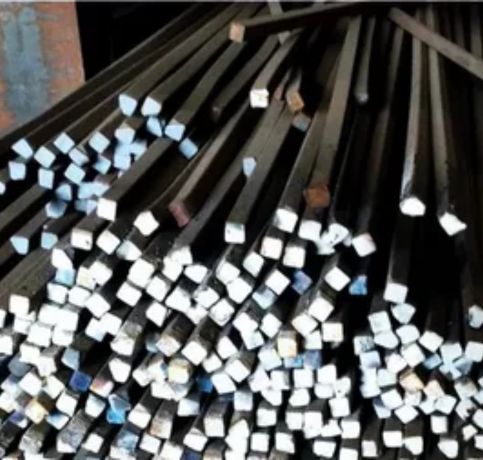

Neith Metals, located in Cairo, Egypt, stands out as a leading manufacturer and supplier of top-notch carbon steel spring bars and rods. With a strong focus on precision and durability, Neith Metals caters to a variety of industries by delivering reliable steel components that meet strict performance standards. The company employs cutting-edge manufacturing techniques and rigorous quality control to guarantee that every product boasts exceptional strength and resilience. Renowned for its customer-first approach and prompt delivery, Neith Metals has become a trusted ally for businesses in search of robust and cost-effective carbon steel solutions in the area.
Carbon steel spring bars and rods are primarily made of iron mixed with different amounts of carbon, usually between 0.5% and 1.0%. This specific blend strikes a perfect balance between hardness and ductility, making them perfect for spring applications. Their mechanical properties include high tensile strength, impressive elasticity, and solid fatigue resistance, allowing these bars and rods to endure repeated stress without permanent deformation. The moderate carbon content ensures they are tough enough to hold their shape while still being flexible, making them incredibly reliable in dynamic mechanical settings.
|
Steel Grade |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
B |
Cu |
Mo |
V |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
55 |
0.52-0.60 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.30 max |
/ |
0.25 max |
/ |
/ |
|
65 |
0.62-0.70 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
70 |
0.62-0.75 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
75 |
0.72-0.80 |
0.50-0.80 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.30 max |
/ |
0.25 max |
/ |
/ |
|
85 |
0.95-1.04 |
0.40 max |
0.35 max |
0.025 max |
0.025 max |
/ |
/ |
/ |
/ |
/ |
/ |
|
65Mn |
0.62-0.70 |
0.90-1.20 |
0.17-0.37 |
0.035 max |
0.035 max |
0.25 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
60Si2Mn |
0.56-0.64 |
0.70-1.00 |
1.50-2.00 |
0.035 max |
0.035 max |
0.35 max |
0.25 max |
/ |
0.25 max |
/ |
/ |
|
50CrVA |
0.46-0.54 |
0.50-0.80 |
0.17-0.37 |
0.025 max |
0.025 max |
0.80-1.10 |
0.35 max |
/ |
0.25 max |
/ |
0.10-0.20 |
|
55SiCrA |
0.51-0.59 |
0.50-0.80 |
1.20-1.60 |
0.025 max |
0.025 max |
0.50-0.80 |
0.35 max |
/ |
0.25 max |
/ |
/ |
|
60Si2CrA |
0.56-0.64 |
0.40-0.70 |
1.40-1.80 |
0.025 max |
0.025 max |
0.70-1.00 |
0.35 max |
/ |
0.25 max |
/ |
/ |
|
Steel Grade |
Tensile Strength Rm (Mpa) |
Yield Strength Rp0.2 (Mpa) |
Elongation A5 (%) |
Area Reduction Ratio C (%) |
|---|---|---|---|---|
|
65 |
980 min |
785 min |
9 min |
35 min |
|
70 |
1030 min |
835 min |
8 min |
30 min |
|
85 |
1130 min |
980 min |
6 min |
30 min |
|
65Mn |
980 min |
785 min |
8 min |
30 min |
|
60Si2Mn |
1275 min |
1180 min |
5 min |
25 min |
|
50CrVA |
1275 min |
1130 min |
10 min |
40 min |
|
55SiCrA |
1450-1750 |
1300 min |
6 min |
25 min |
|
60Si2CrA |
1765 min |
1570 min |
6 min |
20 min |
When selecting carbon steel spring bars, consider factors like the required strength, durability, and fatigue resistance for the specific application. Also, evaluate the environment's corrosion potential and the bar's ability to retain spring properties over time.
Carbon steel spring bars are generally not suitable for cryogenic applications due to their reduced toughness and brittleness at extremely low temperatures. Materials like stainless steel or special alloys are preferred for such conditions.
Carbon steel spring rods are available in various sizes, typically ranging from 1/4 inch to several inches in diameter, with lengths varying based on application requirements. Custom sizes can be manufactured to meet specific load, stress, or design needs.
Carbon steel spring bars and rods are primarily made of iron mixed with different amounts of carbon, usually between 0.5% and 1.0%. This specific blend strikes a perfect balance between hardness and ductility, making them perfect for spring applications. Their mechanical properties include high tensile strength, impressive elasticity, and solid fatigue resistance, allowing these bars and rods to endure repeated stress without permanent deformation. The moderate carbon content ensures they are tough enough to hold their shape while still being flexible, making them incredibly reliable in dynamic mechanical settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neith Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Alexandria, Egypt
