Neith Metals, located in Cairo, Egypt, stands out as a top-notch manufacturer and supplier of high-quality Copper C10200 Bars and Rods. Known for their precision and dependability, Neith Metals serves a variety of industries by delivering exceptional copper products that adhere to strict international standards. With cutting-edge manufacturing capabilities and a strong commitment to excellence, the company guarantees consistent performance and durability in their products. Their Copper C10200 Bars and Rods are highly regarded for their outstanding electrical and thermal conductivity, making Neith Metals a reliable partner for projects that require premium copper materials throughout the Middle East and beyond.
Copper C10200, often referred to as electrolytic tough pitch (ETP) copper, is made up of 99.9% pure copper, with just a hint of oxygen at around 0.02–0.04%. This unique composition gives it remarkable electrical and thermal conductivity. In terms of mechanical properties, it boasts a tensile strength of about 210–250 MPa and a yield strength close to 70–100 MPa. It also offers good ductility, with an elongation percentage of around 30–40%, making it easy to shape and machine. Additionally, C10200 copper is known for its excellent corrosion resistance and high thermal stability, which makes it perfect for demanding industrial applications.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

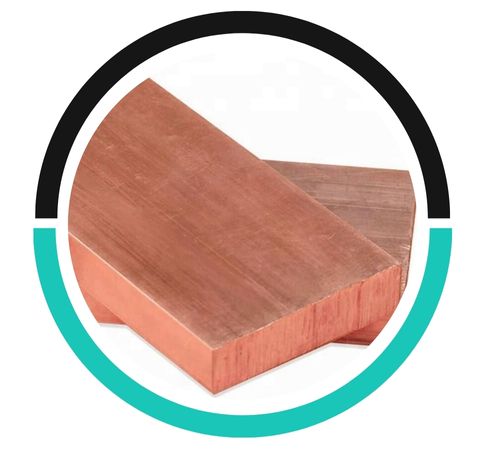

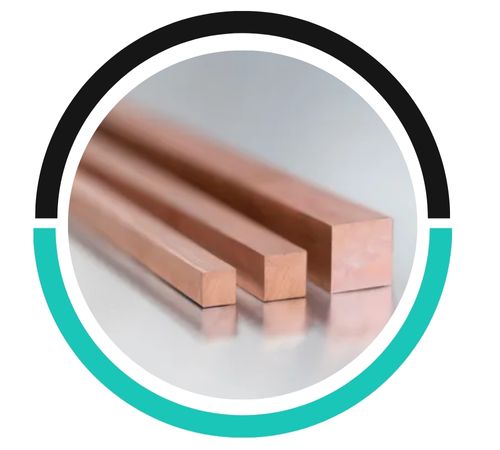

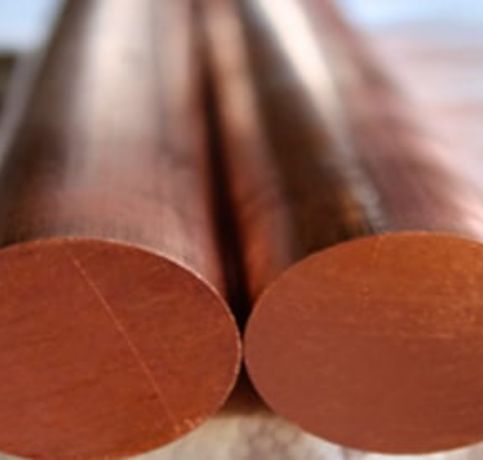

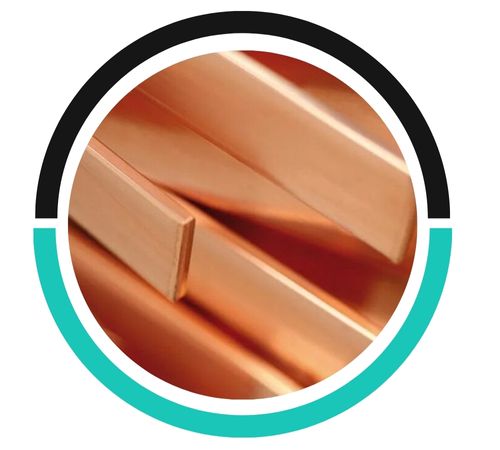

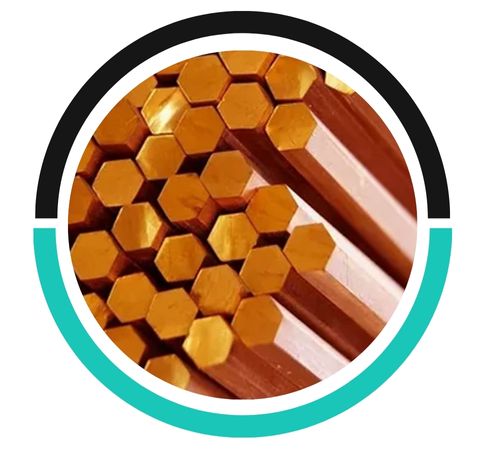

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10200 |
| Melting Point – Solidus ⁰F | 1981 |
| Melting Point – Liquidus ⁰F | 1981 |
| Density lb/cu in. at 68⁰F | 0.323 |
| Electrical Conductivity % IACS at 68⁰F | 101 |
| Specific Gravity | 8.94 |
| Specific Heat Capacity Btu/lb/⁰F @ 68 ⁰F | 0.092 |
| Thermal Conductivity Btu/sq ft/ft hr/ ⁰F at 68⁰F | 226 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-392 ⁰F) | 9.6 |
| Modulus of Rigidity ksi | 6400 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-212 ⁰F) | 9.4 |
| Modulus of Elasticity in Tension ksi | 17000 |
| Coefficient of Thermal Expansion 10-6 per ⁰F (68-572 ⁰F) | 9.8 |
| Standards | Country | Value |
|---|---|---|
| EN | Europe | Cu-OF |
| DIN CEN/TS 13388 | Germany | CW008A |
| UNS | – | C10200 |
| JIS | Japan | C1020 |
| GB | China | TU1 |
| BS | England | C102 |
| Thermal Properties | Metric | English |
|---|---|---|
| Annealing Point | >= 371 °C | >= 700 °F |
| CTE, linear | 17.0 µm/m-°C @Temperature 20.0 – 100 °C | 9.44 µin/in-°F @Temperature 68.0 – 212 °F |
| 17.7 µm/m-°C @Temperature 20.0 – 300 °C | 9.83 µin/in-°F @Temperature 68.0 – 572 °F | |
| 17.3 µm/m-°C @Temperature 20.0 – 200 °C | 9.61 µin/in-°F @Temperature 68.0 – 392 °F | |
| Thermal Conductivity | 391 W/m-K @Temperature 20.0 °C | 2710 BTU-in/hr-ft²-°F @Temperature 68.0 °F |
| Melting Point | 1083 °C | 1981 °F |
| Specific Heat Capacity | 0.385 J/g-°C @Temperature 20.0 °C | 0.0920 BTU/lb-°F @Temperature 68.0 °F |
| Property/unit | Condition | Min | Max |
|---|---|---|---|
| Tensile Strength (N/mm2) | 1/2H | 290 | |
| Elongation in 5.65 Cross sectional area | O | 32 | |
| Tensile Strength (N/mm2) | H | 350 | |
| Tensile Strength (N/mm2) | O | 260 | |
| Elongation in 5.65Cross sectional area | 1/2H | 4 |
Yes, Copper C10200 Bars and Rods are fully recyclable. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C10200 Bars and Rods generally do not require corrosion protection coatings as copper naturally resists corrosion. However, in certain aggressive environments, protective coatings may be used to enhance durability.
Yes, Copper C10200 Bars and Rods can be welded using techniques like TIG and MIG welding. Their high conductivity and low oxygen content ensure strong and reliable welds for various applications.
Copper C10200 Bars and Rods find extensive use in electrical, mechanical, and thermal applications thanks to their superior conductivity and strength. You’ll often see them in electrical wiring, busbars, and connectors, where they play a crucial role in efficient power transmission. They’re also used in plumbing, heat exchangers, and components of industrial machinery where corrosion resistance and thermal performance are vital. Plus, these copper rods are key in the production of various electronic devices and precision instruments. Their versatility and reliability make Copper C10200 Bars and Rods essential in industries like construction, automotive, aerospace, and telecommunications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
