Copper C10500 Bar/Rods

Neith Metals is a reputable manufacturer and supplier located in Cairo, Egypt, known for its top-notch copper products, particularly the Copper C10500 Bar/Rods. With a solid track record in precision engineering and dependable delivery, Neith Metals serves a wide range of industrial needs both locally and internationally. The company places a strong emphasis on excellence in sourcing materials, ensuring that all their products adhere to global standards. Whether it’s for electrical, thermal, or structural uses, Neith Metals provides tailored copper solutions that excel in performance. Their Copper C10500 Bar/Rods are highly regarded for their purity, durability, and conductivity, making them a go-to choice in demanding engineering and manufacturing fields.

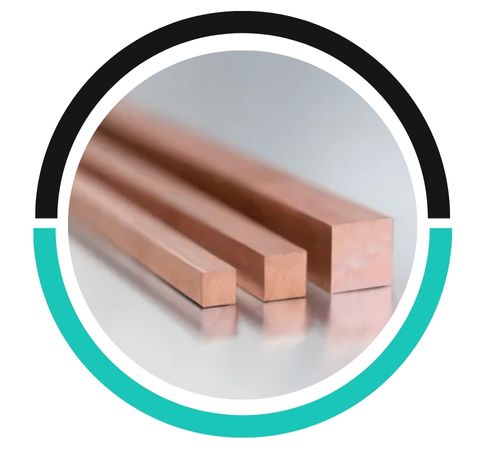

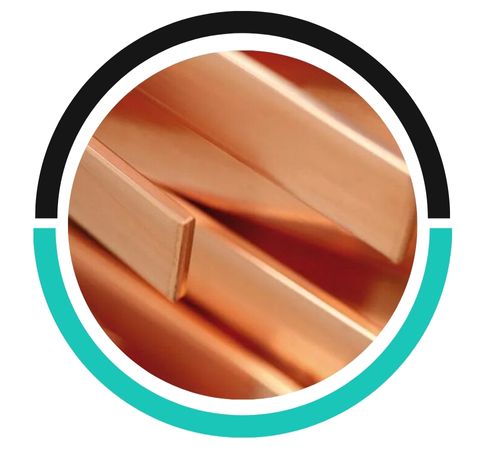

C10500 Copper Round Bars Egypt, Copper C10500 Hexagonal Bars Supplier in Egypt, C10500 Copper Bus Bars Exporter in Egypt, Copper C10500 Hex Bars Stockist in Alexandria, C10500 Copper Alloy Rectangular Bars Supplier in Egypt,Copper C10500 Square Bars Distributor in Egypt, 3/16" Copper C10500 Rod Stockist Port Said, C10500 3/8" Copper Alloy Round Rod Price in Port Said, Copper Flat Bars Egypt

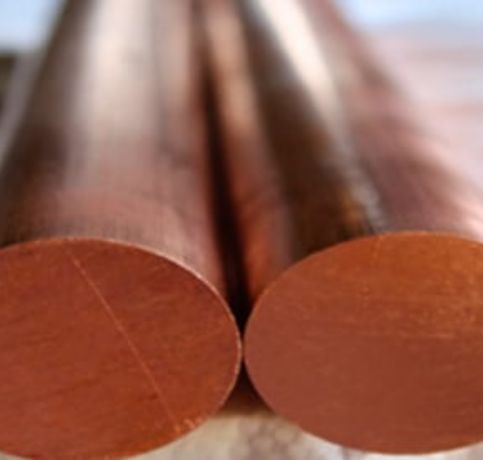

Copper C10500 Forging Rod

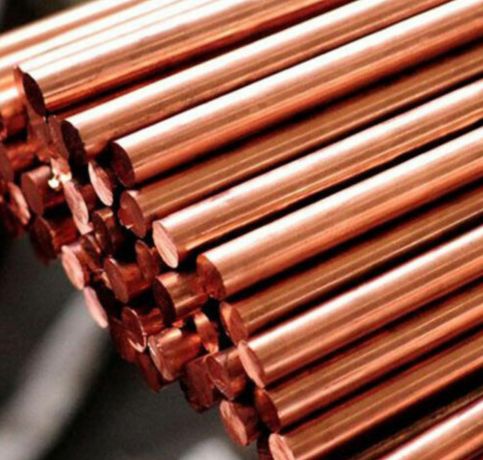

Copper C10500 Bus Bars

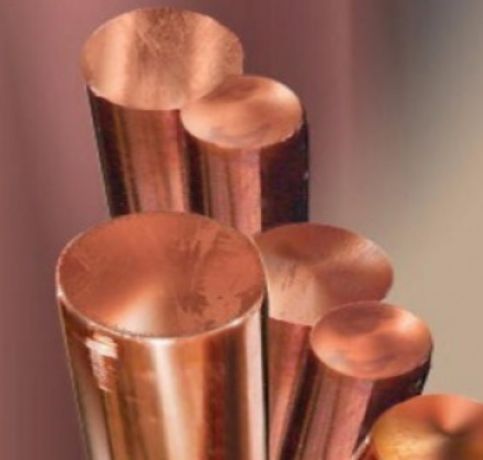

C10500 Copper Bright Rods

What is Copper C10500 Bar/Rods

The Copper C10500 Bar/Rods are made from high-purity copper, typically containing at least 99.95% copper with minimal impurities. This oxygen-free, high-conductivity (OFHC) copper grade guarantees outstanding electrical and thermal conductivity. On the mechanical side, C10500 boasts excellent ductility and moderate tensile strength, usually falling between 215 to 250 MPa. It also offers remarkable corrosion resistance and can be easily processed through welding, brazing, or soldering. These features make C10500 copper especially ideal for high-performance electrical and electronic applications where both conductivity and purity are essential.

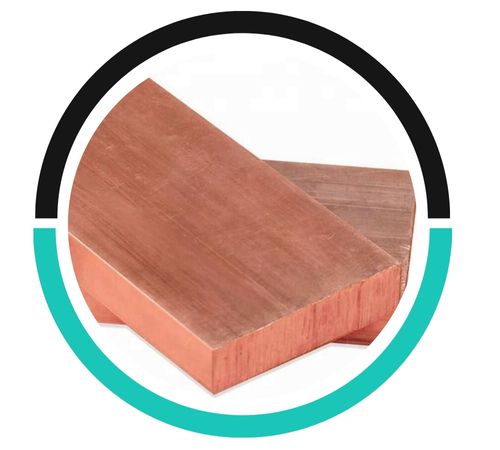

C10500 Copper Forging Rod Price List in Alexandria, Copper C10500 Threaded Bars Supplier in Cairo, Copper C10500 Copper Hexagonal Bars Exporter in Cairo, C10500 Pure Copper Rods Exporter in Egypt, C10500 Copper Round Bars Manufacturer in Port Said, Copper C10500 Round Bars Distributor in Egypt, C10500 Copper Half Round Bars Dealer in Cairo, Stockist of C10500 Copper Forged Bar in Cairo, 20mm Copper C10500 Round Bar Supplier in Egypt, C10500 Oxygen Free Copper Rectangle Rods Exporter in Alexandria

Copper C10500 Bar and Rods Specification

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA

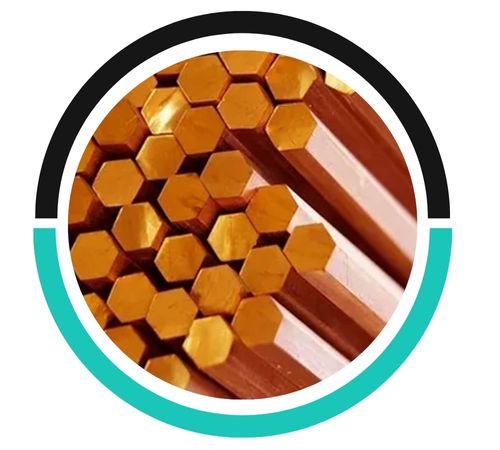

Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10500

Copper C10500 Bar and Rods Chemical Compositions

Elements
Cu^(1,2,3)	Ag⁽⁴⁾	O
(1) This is a high conductivity copper which has, in the annealed condition a minimum conductivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS. (2) Cu value includes Ag. (3) Cu is determined by the difference between the impurity total and 100%. (4) Ag 0.034% min is the equivelant of, Ag 10 Troy Oz min.
Min (%)	99.95	0.034
Max (%)			0.001

Copper C10500 Bar and Rods Mechanical Properties

Form	Temper	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rockwell B scale	Rockwell F scale	Shear Strength (ksi)	Section Size (in)	Cold Work (%)
* Measured at room temperature, 68°F (20°C).
Rod	As Hot Rolled	M20	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1
	Hard	H04	55 Typ	50 Typ	10 Typ	60 Typ	94 Typ	29 Typ	0.25	40
	Hard	H04	45 Typ	40 Typ	20 Typ	45 Typ	85 Typ	26 Typ	2	16
	Hard	H04	48 Typ	44 Typ	16 Typ	47 Typ	87 Typ	27 Typ	1	35
	Nominal Grain Size 0.050 mm	OS050	32 Typ	10 Typ	55 Typ		40 Typ	22 Typ	1

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neith Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10500 Bar/Rods Types

C10500 Wrought Copper Alloy Rod & Bar Size Chart, C10500 Copper Round Rods Price in Port Said, Copper C10500 Round Bars Supplier in Egypt, C10500 Copper Bus Bar Stockist in Cairo, Copper C10500 Half Round Bar Supplier in Alexandria, C10500 Copper Forged Bar Dealer in Cairo, 20mm Copper C10500 Round Bar Manufacturer in Cairo, C10500 Copper Round Rods Supplier in Alexandria

Frequently Asked Questions (FAQ)

What Are The Considerations For Selecting Copper C10500 Bar and Rods?

When selecting Copper C10500 Bars and Rods, consider factors like conductivity, corrosion resistance, machinability, application requirements, and environmental conditions to ensure optimal performance and durability.

Can Copper C10500 Bars and Rods Be Used in Cryogenic Applications?

Yes, Copper C10500 Bars and Rods can be used in cryogenic applications due to their excellent thermal conductivity and mechanical stability at extremely low temperatures.

Do Copper C10500 Bar and Rods Require Regular Inspection?

Yes, Copper C10500 Bars and Rods require regular inspection to ensure their performance, detect wear or damage, and maintain their structural integrity in demanding applications.

Copper C10500 Bar & Rods Uses

Copper C10500 Bar/Rods find extensive use in industries that require exceptional electrical and thermal conductivity. Common applications include electrical connectors, busbars, switchgear components, and high-frequency transmission systems. In the electronics sector, these rods are crucial for printed circuit boards, semiconductor parts, and vacuum technology due to their superior conductivity and purity. They are also utilized in aerospace, medical devices, and cryogenic systems where oxygen-free copper is necessary to prevent embrittlement and ensure long-lasting reliability. Neith Metals provides Copper C10500 solutions customized to meet the highest standards.
