Neith Metals, located in Cairo, Egypt, is a top-notch manufacturer and supplier that specializes in high-quality Copper Nickel Bright Bars. Known for their precision engineering and strict quality controls, Neith Metals ensures that their products meet the highest industrial standards. Their Copper Nickel Bright Bars are designed to provide outstanding durability, resistance to corrosion, and excellent mechanical performance. Catering to a wide array of industries, including marine, chemical, and power generation, Neith Metals is dedicated to delivering reliable and sustainable metal solutions that boost operational efficiency. With a strong emphasis on innovation and customer satisfaction, Neith Metals has established itself as a trusted partner in the metals industry, both in Egypt and beyond.

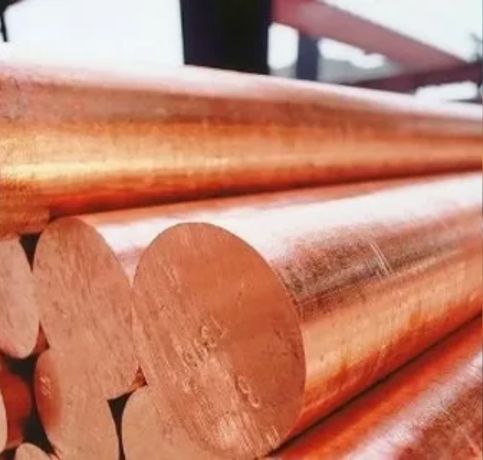

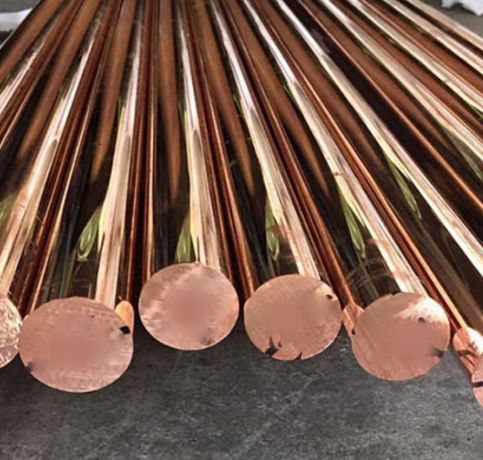

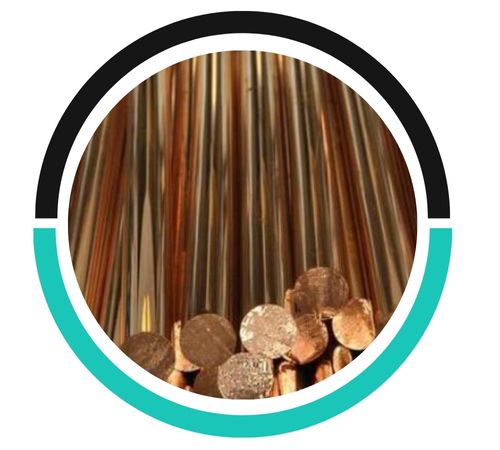

The Copper Nickel Bright Bar from Neith Metals typically consists of 90% copper and 10% nickel, with small amounts of iron and manganese added to improve strength and corrosion resistance. This alloy is celebrated for its impressive tensile strength, usually falling between 400 to 550 MPa, along with good ductility and hardness. Its remarkable resistance to seawater corrosion and biofouling makes it perfect for challenging environments. The bright bar finish not only enhances its appearance but also reduces friction in mechanical applications while ensuring strong thermal and electrical conductivity.
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B111 / ASME SB111
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |

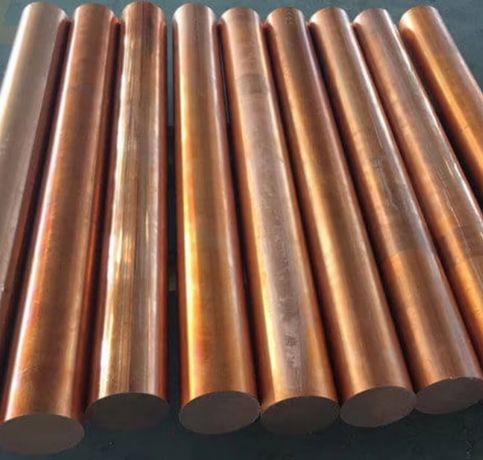

| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
| Bar Diameter (mm) | Weight (kg/m) |
|---|---|
| 6 | 0.22 |
| 8 | 0.39 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.58 |
| 20 | 2.47 |
| 25 | 3.85 |
| 32 | 6.31 |
| 40 | 9.86 |
| 45 | 12.5 |
| 50 | 15.4 |
| 60 | 22.2 |
| 65 | 26.0 |
| 75 | 34.7 |
| 90 | 49.9 |
| 100 | 61.6 |
Yes, Copper Nickel bright bars are highly customizable in terms of dimensions, lengths, and surface finishes to meet specific industry requirements, providing tailored solutions for various applications and projects.
Neith Metals’ Copper Nickel Bright Bars are extensively utilized in the marine, chemical processing, and power generation sectors due to their exceptional corrosion resistance and mechanical strength. They are particularly well-suited for creating seawater piping, condenser tubes, heat exchangers, and desalination plants, where durability against saltwater is crucial. Additionally, these bright bars find applications in automotive components, aerospace parts, and electrical connectors, where precision and reliability are key. Their resistance to biofouling also makes them ideal for shipbuilding and offshore platforms.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
