Neith Metals is a reliable manufacturer and supplier of Incoloy 330 Bars and Rods, proudly based in Cairo, Egypt. We specialize in high-performance nickel-iron-chromium alloys that are designed to withstand the toughest industrial conditions. By leveraging cutting-edge manufacturing technology and strict quality control measures, we produce Incoloy 330 Bars and Rods that excel in oxidation resistance, thermal stability, and mechanical strength, even at elevated temperatures. These products are crafted to perform consistently in harsh environments and under high-stress situations, making them perfect for critical industrial applications. We cater to various industries, including chemical processing, power generation, aerospace, and marine engineering, providing durable and precision-engineered Incoloy 330 Bars and Rods that meet international performance standards.
Our Incoloy 330 Bars and Rods are primarily made up of nickel, iron, and chromium, with added copper, cobalt, and titanium to boost their high-temperature strength and corrosion resistance. This alloy showcases impressive mechanical properties, featuring a typical tensile strength ranging from 550 to 700 MPa, along with excellent creep and fatigue resistance, and outstanding thermal stability. Incoloy 330 Bars and Rods are designed to maintain reliable performance even when exposed to high temperatures, oxidizing environments, and mechanical stress, ensuring they last long and operate efficiently.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |

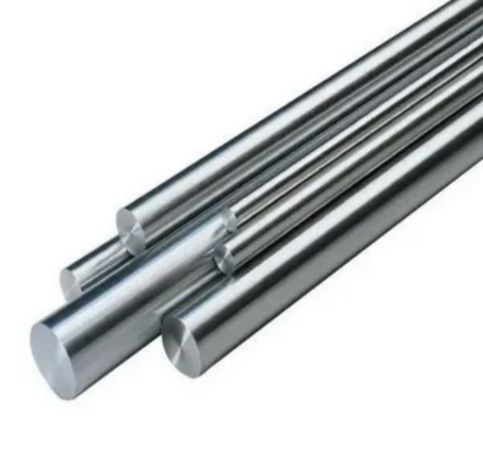

| Round bar size | Diameter: 3-~330mm |
| Hex Bar size | 2-100mm A/F |

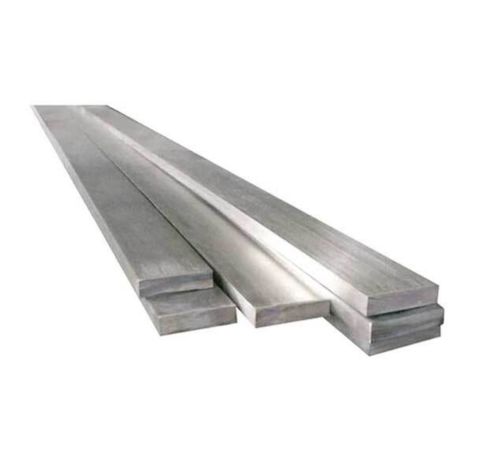

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

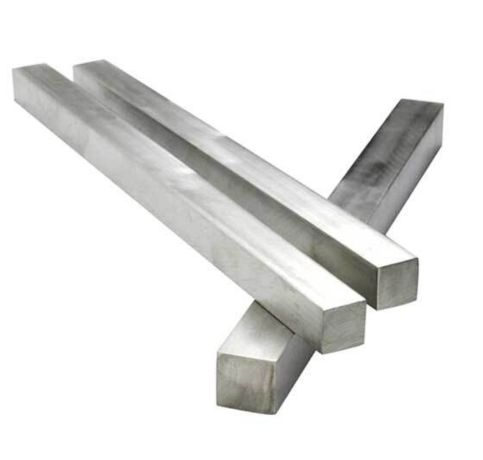

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Yes, Incoloy 330 bars and rods offer excellent corrosion resistance, especially in high-temperature environments. They are highly resistant to oxidation, carburization, and sulfidation.
Yes, Incoloy 330 bars and rods can be customized in various sizes and lengths to meet specific requirements. They are available in different diameters, lengths, and shapes as per client specifications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
The Incoloy 330 Bars and Rods we supply are extensively utilized in industries that demand exceptional resistance to heat, corrosion, and thermal fatigue. They are perfect for furnace components, heat exchangers, chemical processing equipment, and gas turbine parts that operate under high temperatures. Additionally, these bars and rods find applications in power plants, marine engineering, and aerospace, where mechanical strength, dimensional stability, and oxidation resistance are crucial. With our commitment to precision manufacturing, stringent quality standards, and superior metallurgical properties, Neith Metals’ Incoloy 330 Bars and Rods provide reliable performance you can count on.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
