Incoloy 800/800H/800HT Bars/Rods

Neith Metals stands out as a top manufacturer and supplier of Incoloy 800/800H/800HT Bars and Rods, proudly based in Cairo, Egypt. They focus on crafting high-performance nickel-iron-chromium alloys that are perfect for tough industrial applications. Thanks to their cutting-edge manufacturing technology and rigorous quality control, Neith Metals produces bars and rods that boast remarkable corrosion resistance, high-temperature strength, and thermal stability. These products are engineered to endure mechanical stress and harsh conditions, making them ideal for critical operations. They cater to various industries, including power generation, chemical processing, aerospace, and marine engineering, delivering durable and precision-engineered Incoloy 800/800H/800HT Bars and Rods that meet international standards for reliability and performance.

Incoloy 800 Rods Dealer in Cairo, Incoloy 800 Round Bars Manufacturer in Cairo, Incoloy DIN 1.4958 Square Bars Supplier in Alexandria, Incoloy Alloy 800 Flat Bars Price List in Alexandria, Incoloy 800HT Rectangular Bars Supplier in Port Said, Incoloy 800 Bars Price List in Egypt, Incoloy Alloy 800H Round Bars Exporter Stockist in Cairo, Stockist of Incoloy 800HT Round Bars in Cairo

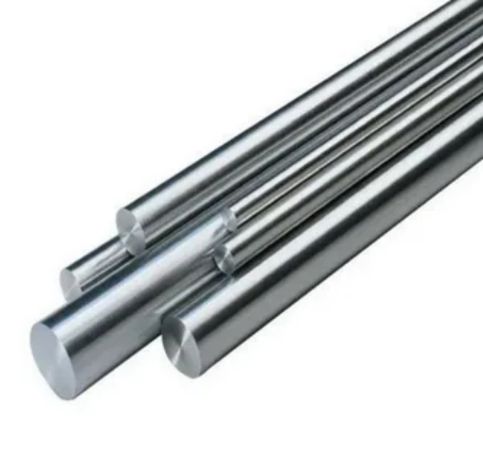

Incoloy 800 Round Bars

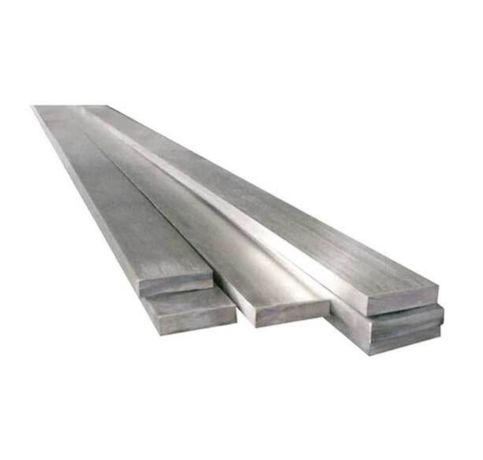

Incoloy 800H Rectangular Bars

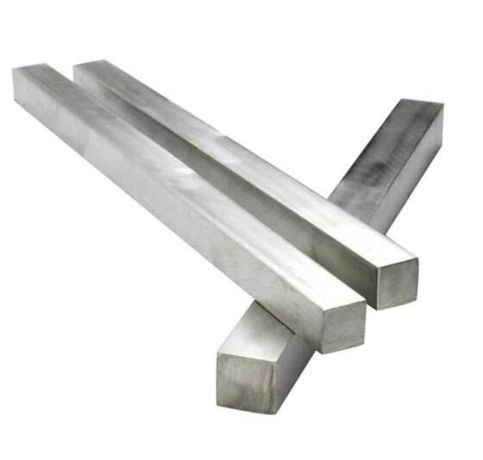

Incoloy 800H Square Rods

The Incoloy 800/800H/800HT Bars and Rods from Neith Metals are primarily made up of nickel, iron, and chromium, with added aluminum and titanium to boost high-temperature strength, creep resistance, and oxidation stability. The 800H and 800HT variants are specially heat-treated to provide superior thermal strength and performance at elevated temperatures. These bars and rods showcase excellent mechanical properties, with tensile strength ranging from 520 to 750 MPa, outstanding ductility, and long-lasting dimensional stability. Their unique blend of strength, corrosion resistance, and thermal stability guarantees reliable performance in high-temperature and high-stress environments.

Incoloy 800H Bars Supplier in Egypt, Incoloy UNS N08810 Hollow Rods Price List in Alexandria, Incoloy Alloy 1.4859 Rectangular Bars Supplier in Cairo, Incoloy DIN 1.4876 Hexagonal Bars Exporter in Cairo, Incoloy 800 T-Bars Exporter in Egypt, Incoloy 800HT Flat Rods Exporter in Alexandria, ASME SB408 Incoloy Alloy 800HT Flat Bars Egypt, Incoloy UNS N08811 Hollow Round Bar Manufacturer in Port Said, Incoloy Alloy 800HT Round Bars Distributor in Egypt, Incoloy 800H Polished Rods Dealer in Cairo

Incoloy 800/800H/800HT Bars and Rods Specification

Incoloy 800/800H/800HT Bars Specifications

Specification : ASTM B166, A479 / ASME SB166, SA479

Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

Incoloy Hex Bars : 4mm – 101.6mm

Incoloy Square Bars : 3mm – 100mm

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Length : 1 to 6 Meters, Custom Cut Lengths

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.

Chemical Compositions of Incoloy 800/800H/800HT Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
800	0.10 max	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Incoloy 800/800H/800HT Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Alloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

Incoloy 800/800H/800HT Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN	OR
Incoloy 800	1.4876	N08800	ЭИ670	Z8NC32-21	NCF 800	NA 15	X10NiCrAlTi32-20	XH32T
Incoloy 800H	1.4958 / 1.4876	N08810	ЭИ670	Z8NC33-21	NCF 800H	NA 15(H)	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	ЭИ670	–	NCF 800HT	NA 15(HT)	X8NiCrAlTi32-21	XH32T

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neith Metals?

Packaging

Weight Chart of Incoloy 800/800H/800HT Bars and Rods

Incoloy 800 Round bar
Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 800/800H/800HT Bars and Rods Types

ASTM B166 Incoloy Alloy 800 Rectangular Rods Exporter in Egypt, Incoloy 1.4859 Round Bars Stockist in Alexandria, Incoloy 800 Hex Bars Supplier in Egypt, Incoloy UNS N08800 Cold Drawn Round Bars Distributor in Egypt, ASTM B166 Incoloy Alloy 800 Rods Stockist Port Said Incoloy 800HT Rods Price in Port Said, Incoloy 800H Round Bars, Incoloy DIN 1.4876 Rectangular Bars Supplier in Egypt

Frequently Asked Questions (FAQ)

Are Incoloy 800/800H/800HT Bars and Rods Corrosion-Resistant?

Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.

Can Incoloy 800/800H/800HT Bars and Rods be Customized in Size and Length?

Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.

How Do Incoloy 800/800H/800HT Bars and Rods Perform in High-Temperature Environments?

Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.

Incoloy 800/800H/800HT Bars and Rods Uses

Neith Metals’ Incoloy 800/800H/800HT Bars and Rods are extensively utilized in industries that demand high-temperature strength, corrosion resistance, and stability under stress. They are perfect for heat exchangers, steam generator components, furnace parts, and chemical processing equipment that operate in oxidizing and high-temperature settings. Additionally, these bars and rods find applications in power plants, petrochemical facilities, and marine engineering, where long-term durability and reliability are crucial. With precise manufacturing and strict quality standards, Neith Metals ensures that their products meet the highest expectations.
