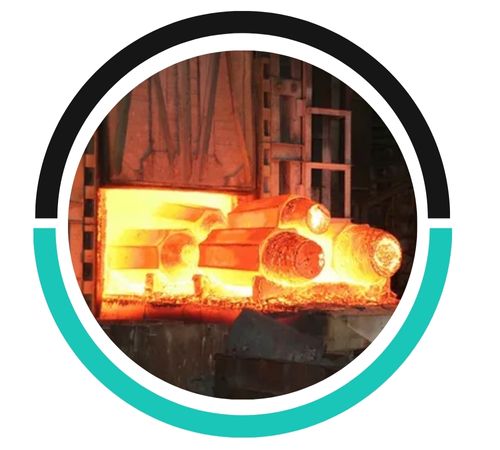

Neith Metals stands out as a top-notch manufacturer and supplier of Incoloy 800H Forgings, proudly based in Cairo, Egypt. They focus on crafting high-performance nickel-iron-chromium alloys that are specifically designed to thrive in tough industrial settings. Thanks to their cutting-edge forging technology and rigorous quality control measures, Neith Metals produces Incoloy 800H Forgings that boast remarkable strength, thermal stability, and resistance to corrosion, even at high temperatures. These forgings are built to endure mechanical stress and harsh operating conditions, making them perfect for critical applications. They cater to a variety of industries, including power generation, chemical processing, aerospace, and marine engineering, delivering precision-engineered, durable Incoloy 800H Forgings that adhere to international standards for reliability and performance.
The Incoloy 800H Forgings from Neith Metals are primarily made up of nickel, iron, and chromium, with added aluminum and titanium to boost their high-temperature strength, creep resistance, and oxidation stability. This alloy showcases impressive mechanical properties, featuring a typical tensile strength ranging from 515 to 690 MPa, along with excellent ductility and outstanding thermal stability. These forgings consistently perform well under high temperatures, corrosive conditions, and mechanical stress, ensuring they remain durable and reliable in demanding industrial applications.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |
The ideal temperature range for forging Incoloy 800H is between 2100°F and 2250°F (1149°C to 1232°C). This range ensures optimal workability and preserves the material’s mechanical properties.
Post-forging operations for Incoloy 800H typically include annealing to relieve stress and enhance ductility, followed by heat treatment to achieve desired mechanical properties. Surface cleaning and inspection for defects are also essential to ensure quality.
To determine if Incoloy 800H Forgings meet your specific needs, review material specifications, including composition and mechanical properties, and consult with suppliers for customized testing or performance data. Additionally, consider your application's temperature, corrosion, and mechanical requirements.
Neith Metals’ Incoloy 800H Forgings are widely utilized in sectors that demand high-temperature strength, corrosion resistance, and dimensional stability. They are particularly suited for components in steam generators, furnace parts, heat exchangers, and chemical processing equipment that operate in oxidizing and high-temperature environments. Additionally, these forgings find their place in power plants, petrochemical facilities, and marine engineering, where long-lasting durability and reliability are crucial. With their precision manufacturing, strict quality standards, and exceptional metallurgical properties, Neith Metals’ Incoloy 800H Forgings deliver top-notch performance, ensuring they meet the needs of even the most demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
