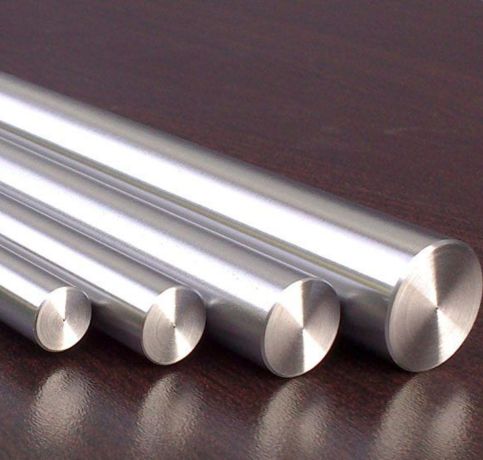

Neith Metals stands out as a top-notch manufacturer and supplier of Inconel 600 Bars and Rods, proudly based in Cairo, Egypt. Known for our commitment to quality, precision, and reliability, we deliver high-performance nickel-chromium superalloys that not only meet international standards but also tackle the toughest industrial challenges. Our Inconel 600 Bars and Rods are highly sought after for their remarkable high-temperature strength, corrosion resistance, and durability, making them perfect for demanding applications in aerospace, chemical, petrochemical, and power generation sectors. With cutting-edge manufacturing technology and rigorous quality control, Neith Metals offers robust, dependable, and long-lasting solutions that prioritize safety, efficiency, and outstanding performance in critical industrial and engineering settings.
The composition of Inconel 600 Bars and Rods includes 72% nickel, 14–17% chromium, and 6–10% iron, along with trace elements of carbon, manganese, and silicon. This nickel-chromium alloy is known for its impressive resistance to oxidation, carburization, and aqueous corrosion, even at high temperatures. In terms of mechanical properties, it boasts a tensile strength ranging from 515 to 760 MPa, a yield strength of about 205 to 350 MPa, and a density of 8.4 g/cm³. Additionally, Inconel 600 Bars and Rods offer excellent creep and fatigue resistance, along with ductility and toughness, making them ideal for extreme temperatures and corrosive environments.
Specification : ASTM B 166 / ASME SB 166
Dimensions : ASTM, ASME and API
Size : 5 mm To 500 mm Dia in 100 mm TO 6000 mm Length available with NACE MR 01-75.
Length : 100 mm To 3000 mm Long & Above
Finish : Bright, Polish & Black
Grade : Inconel 600 – UNS N06600

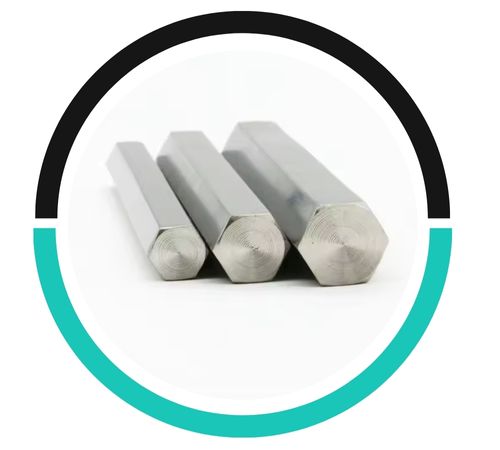

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Our Inconel 600 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Temperature | Coefficient of Expansion | Electrical Resistivity | Thermal Conductivity | Specific Heat | |||||
|---|---|---|---|---|---|---|---|---|---|
| °F | °C | 10-6in/in•°F | mm/m•°C | ohm•circ•mil/ft | mL•m | Btu•in/ft2•h•°F | W/m•°C | Btu/lb•°F | J/kg•°C |
| -250 | -150 | 6 | 10.9 | – | – | 86 | 12.5 | 0.073 | 310 |
| -200 | -100 | 6.3 | 11.7 | – | – | 89 | 13.1 | 0.079 | 352 |
| -100 | -50 | 6.7 | 12.3 | – | – | 93 | 13.6 | 0.09 | 394 |
| 70 | 20 | 5.8 | 10.4 | 620 | 1.03 | 103 | 14.9 | 0.106 | 444 |
| 200 | 100 | 7.4 | 13.3 | 625 | 1.04 | 109 | 15.9 | 0.111 | 465 |
| 400 | 200 | 7.7 | 13.8 | 634 | 1.05 | 121 | 17.3 | 0.116 | 486 |
| 600 | 300 | 7.9 | 14.2 | 644 | 1.07 | 133 | 19 | 0.121 | 502 |
| 800 | 400 | 8.1 | 14.5 | 657 | 1.09 | 145 | 20.5 | 0.126 | 519 |
| 1000 | 500 | 8.4 | 14.9 | 680 | 1.12 | 158 | 22.1 | 0.132 | 536 |
| 1200 | 600 | 8.6 | 15.3 | 680 | 1.13 | 172 | 23.9 | 0.14 | 578 |
| 1400 | 700 | 8.9 | 15.8 | 680 | 1.13 | 186 | 25.7 | 0.145 | 595 |
| 1600 | 800 | 9.1 | 16.1 | 686 | 1.13 | 200 | 27.5 | 0.149 | 611 |
| 1800 | 900 | 9.3 | 16.4 | 698 | 1.15 | – | – | – | 628 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF600 | NA 13 | МНЖМц 28-2.5-1.5 | – | NiCr15Fe |
Yes, Inconel 600 bars/rods offer excellent resistance to high temperatures, maintaining strength and oxidation resistance in applications up to 2000°F (1093°C).
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com
Yes, Inconel 600 bars/rods exhibit exceptional resistance to oxidation, chlorides, and a wide range of acids, making them ideal for harsh chemical and marine environments.
These bars and rods are widely utilized in industries that demand high-temperature performance and exceptional corrosion resistance. In the aerospace sector, they are used for turbine components, combustion chambers, and exhaust systems. In power generation, you’ll find them in heat exchangers, furnace components, and boiler parts. The chemical and petrochemical industries rely on them for reactors, piping, and valves that face harsh chemicals. Plus, Inconel 600 Bars and Rods are perfect for marine and offshore equipment, where durability, thermal stability, and oxidation resistance are crucial. At Neith Metals, we ensure that our products are precision-engineered for reliability and longevity, meeting the highest standards in the industry.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Neith Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Alexandria, Egypt
