Neith Metals, based in Cairo, Egypt, stands out as a top manufacturer and supplier of high-quality Monel Forgings, celebrated for their remarkable resistance to corrosion, impressive strength, and long-lasting durability. The company is dedicated to delivering nickel-copper alloy products that adhere to international standards, ensuring dependable performance even in the toughest industrial settings. Thanks to cutting-edge forging technology and rigorous quality control measures, Neith Metals crafts Monel Forgings with exact dimensions, outstanding mechanical properties, and enduring reliability. These forgings find their place in various industries, including marine, chemical processing, oil and gas, and aerospace, where the ability to withstand harsh conditions and mechanical stress is crucial for peak performance.
Monel Forgings mainly consist of nickel (63–70%) and copper (28–34%), with trace amounts of iron, manganese, and silicon to boost their strength and corrosion resistance. They showcase excellent mechanical characteristics, such as tensile strength between 550–700 MPa, good ductility, and high fatigue resistance. Additionally, Monel Forgings provide exceptional protection against pitting, crevice, and stress corrosion, along with impressive toughness even at low temperatures. Their unique blend of strength, durability, and corrosion resistance makes them perfect for critical applications in challenging chemical and marine environments.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel 400, Monel K500
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

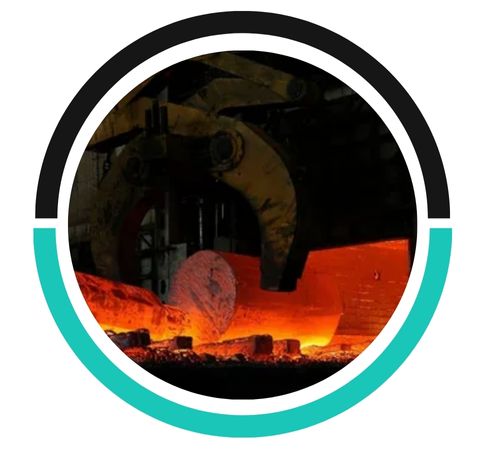

The forging process for Monel typically takes several hours, depending on the size and complexity of the component. It involves heating, shaping, and cooling, with each stage carefully controlled to ensure quality.
The most suitable forging techniques for Monel alloys include open-die and closed-die forging. These methods ensure precise shaping and maintain the material's strength and corrosion resistance during the process.
These Monel Forgings are widely utilized in sectors that demand high strength, corrosion resistance, and lasting durability. In marine engineering, they are used for pump shafts, propellers, valves, and seawater piping systems. The oil and gas industry relies on them for offshore platforms, pipelines, and processing equipment that face harsh conditions. Chemical processing facilities employ Monel Forgings for reactor vessels, heat exchangers, and storage tanks. Moreover, the aerospace and high-performance engineering sectors depend on these forgings for essential structural components, ensuring reliability, safety, and efficient performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
