Neith Metals, located in Cairo, Egypt, stands out as a top manufacturer and supplier of Nickel Alloy 201 Bars and Rods. They’re well-known for their dedication to quality, precision, and ensuring customer satisfaction. With cutting-edge manufacturing facilities and years of experience under their belt, Neith Metals produces Nickel Alloy 201 products that adhere to international standards for strength, corrosion resistance, and durability. They serve a diverse array of industries that need dependable materials for tough environments. Thanks to their focus on innovation and excellence, Neith Metals is solidifying its reputation as a reliable supplier of high-quality nickel alloy products, both in Egypt and beyond.

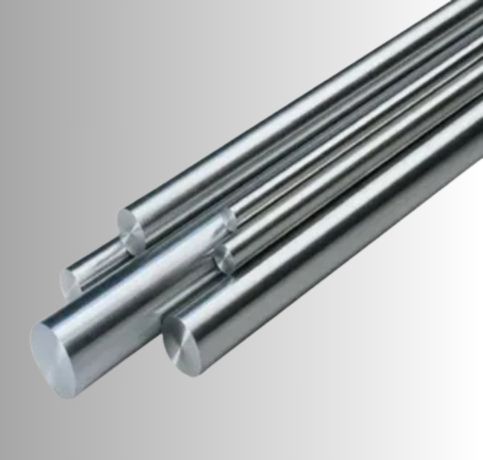

Nickel Alloy 201 Bars and Rods are made from commercially pure wrought nickel, boasting 99.6% nickel content, along with small amounts of iron, manganese, silicon, copper, and a maximum of 0.02% carbon. This unique composition gives them outstanding resistance to corrosion in neutral to moderately reducing environments. On the mechanical side, Nickel Alloy 201 has a tensile strength of around 370 MPa, a yield strength of 100 MPa, and an elongation of about 40%. It maintains its toughness and ductility at both high and low temperatures, making it perfect for settings that require exceptional thermal and chemical stability.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |
| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

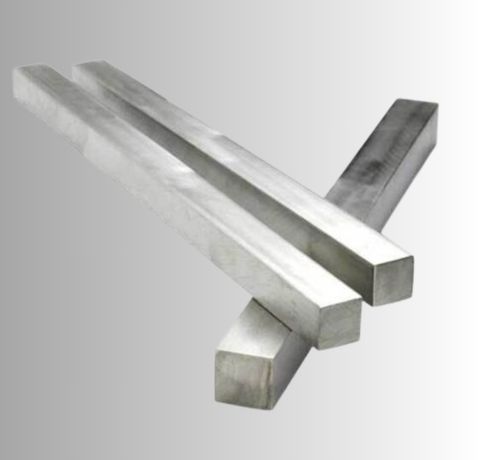

| Square bar size | 4mm to 100mm |
| Hex Bar size | 2mm to 100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |
| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |
| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Nickel Alloy 201 rods can be welded using various welding techniques, including TIG and MIG welding.
Nickel Alloy 201 bars exhibit excellent corrosion resistance, high thermal conductivity, good mechanical properties, and outstanding weldability, especially in reducing environments.
Nickel Alloy 201 rods are available in various sizes, typically ranging from 1/8" to 3" in diameter, and come in finishes such as bright, polished, and cold drawn.
These Nickel Alloy 201 Bars and Rods find their way into various industries that prioritize excellent corrosion resistance and thermal performance. They’re commonly used in chemical processing, food handling, synthetic fiber production, and caustic soda manufacturing. The alloy’s ability to endure strong alkalis and high-temperature oxidizing environments makes it a great choice for heat exchangers, pressure vessels, anodes, and electrical components. Plus, its low carbon content helps prevent graphitization, ensuring a long service life even in high-temperature applications. With its superior formability and weldability, Nickel Alloy 201 is particularly well-suited for marine, petrochemical, and power generation industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
