Neith Metals, located in Cairo, Egypt, stands out as a top manufacturer and supplier of high-quality stainless steel and specialty alloy products. Among their standout offerings are Nitronic 30 Bars and Rods, celebrated for their remarkable blend of strength, corrosion resistance, and durability. Crafted with cutting-edge manufacturing techniques and rigorous quality controls, these bars and rods adhere to global standards for performance and precision. Neith Metals caters to various industries, including transportation, marine, chemical processing, and construction, providing reliable and cost-effective Nitronic 30 solutions that ensure superior performance, longevity, and efficiency across a wide array of industrial and structural applications.
Nitronic 30 Bars and Rods are primarily made up of iron, chromium, and manganese, with small amounts of nickel and nitrogen added to boost mechanical strength and corrosion resistance. This alloy boasts impressive tensile strength, typically ranging from 515 to 690 MPa, and a yield strength of about 275 to 380 MPa. With commendable hardness, toughness, and resistance to wear and corrosion, Nitronic 30 remains stable even in tough environmental conditions. Its well-rounded mix of strength, ductility, and corrosion resistance makes it a great fit for both structural and industrial uses.
| Grade | Nitronic 30 Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

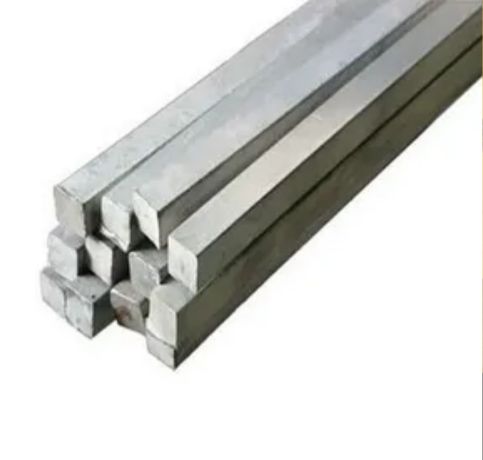

| Nitronic 30 Square bar size | 4 to 100mm |
| Nitronic Alloy 30 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S20400 Hex Bar size | 2-100mm A/F |
| Nitronic 30 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

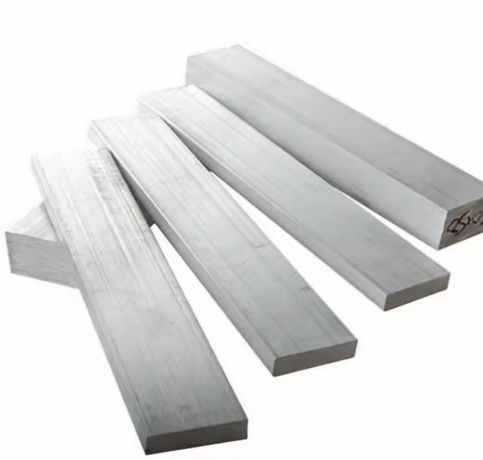

| Nitronic Alloy 30 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S20400 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 30 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 30 Section | 3.0 to 12.0mm thickness |

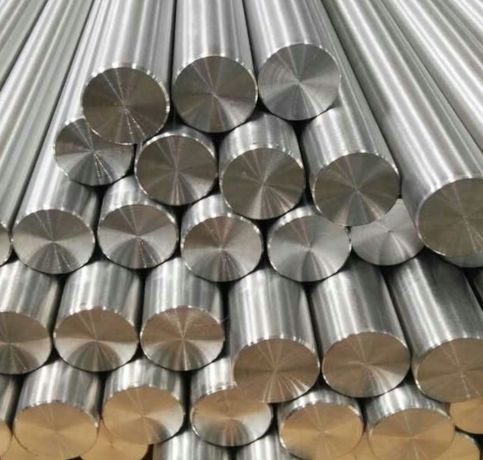

| Nitronic UNS S20400 Round bar size | Diameter: 3-~800mm |
| Nitronic 30 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 30 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 30 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 30 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S20400 Technique | Nitronic 30 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 30 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 30 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 30 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 30 | 0.030 | 17.0 – 15.0 | 0.030 | 1.00 | 0.30 – 0.15 | 3.00 – 1.50 | 17.00 – 15.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 30 Round bar | S20400 | – |
Common diameters for Nitronic 30 rod typically range from 1/8" to 6", with popular sizes including 1/4", 1/2", 3/4", 1", and 2" for various industrial applications.
Nitronic 30 bars typically come with a smooth finish, although a rough finish may also be available depending on the supplier or the specific processing requirements.
Nitronic 30 rod is typically available in sizes ranging from 1/8" to 3" in diameter. Finishes include hot-rolled, cold-drawn, and polished, offering a smooth, uniform surface for various applications.
Nitronic 30 Bars and Rods find their place in various industries that demand strength, toughness, and resistance to corrosion and abrasion. They are perfect for applications like storage tanks, transport equipment, conveyors, and chutes that come into contact with corrosive materials. The marine sector relies on Nitronic 30 for hardware, fittings, and components designed for seawater environments. Chemical and processing plants use it for structural supports, heat exchangers, and piping systems. Moreover, the construction and automotive industries reap the benefits of its durability and formability, making Nitronic 30 a cost-effective and long-lasting choice for demanding industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
