Neith Metals, located in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of top-notch metal products. Among their standout offerings are Nitronic 50 Bars and Rods, which are celebrated for their remarkable blend of strength, corrosion resistance, and toughness. Crafted using cutting-edge technology and a strict commitment to international standards, these bars and rods promise exceptional reliability and performance. Neith Metals caters to various industries, including chemical processing, marine, oil and gas, and aerospace, ensuring that their products are precision-engineered. With a strong focus on innovation and quality, the company consistently delivers dependable Nitronic 50 Bars and Rods for even the most demanding industrial and engineering applications.
Nitronic 50 Bars and Rods are primarily made up of iron, chromium, nickel, and manganese, with nitrogen added to boost their strength and corrosion resistance. This alloy showcases impressive tensile strength, typically falling between 690–960 MPa, and a yield strength of around 380–550 MPa. With outstanding toughness, hardness, and resistance to pitting, crevice corrosion, and stress corrosion cracking, Nitronic 50 maintains its mechanical stability even in harsh environments. Its unique combination of high strength and corrosion resistance makes it perfect for tough industrial and marine conditions.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

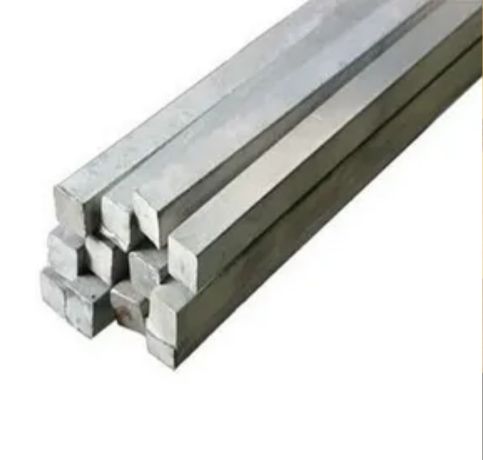

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

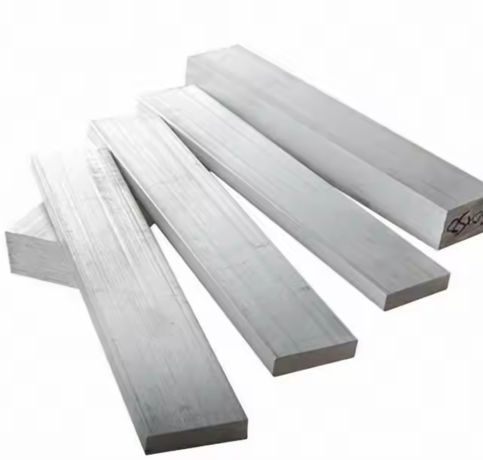

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

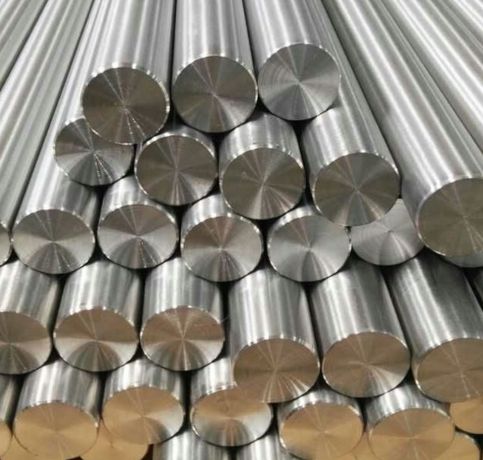

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
Nitronic 50 Bars and Rods are extensively utilized in industries that demand exceptional strength and corrosion resistance. They are particularly suited for marine and offshore components like shafts, pumps, and valves that are regularly exposed to seawater. The chemical and petrochemical industries rely on these bars for heat exchangers, fasteners, and pressure vessels. In the aerospace and power generation sectors, Nitronic 50 is favored for structural parts and high-performance equipment due to its durability and resistance to oxidation. Additionally, it is also used in food processing and pharmaceutical applications, providing longevity, reliability, and superior resistance in challenging operating environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
