Neith Metals, located in Cairo, Egypt, has made a name for itself as a top-notch manufacturer and supplier of high-quality stainless steel and specialty metal products. Among their standout offerings are Nitronic 60 Bars and Rods, which are celebrated for their exceptional wear resistance, corrosion resistance, and mechanical strength. Crafted with cutting-edge technology and rigorous quality controls, these bars and rods provide unmatched reliability in even the toughest applications. Neith Metals caters to a variety of industries, including chemical processing, marine, oil and gas, and aerospace, delivering precision-engineered Nitronic 60 components that are built to thrive in extreme conditions, ensuring durability, efficiency, and value across multiple industrial sectors.
Nitronic 60 Bars and Rods are primarily made up of iron, chromium, and nickel, with added manganese and silicon that greatly enhance their galling and wear resistance. This alloy boasts impressive tensile strength, typically falling between 690–950 MPa, and a yield strength of around 380–550 MPa. With remarkable toughness, hardness, and oxidation resistance up to 980°C, Nitronic 60 excels in both corrosive and high-temperature environments. Its well-rounded mix of strength, corrosion resistance, and wear properties makes it perfect for heavy-duty applications.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

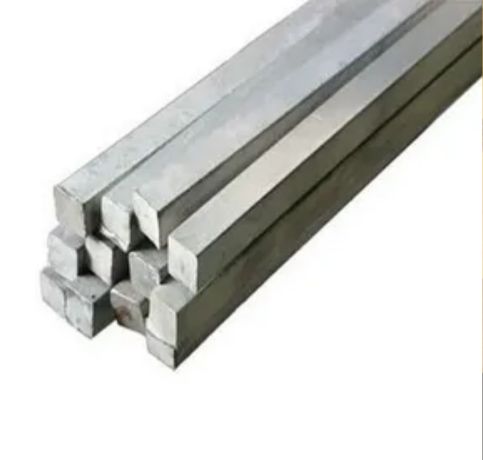

| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

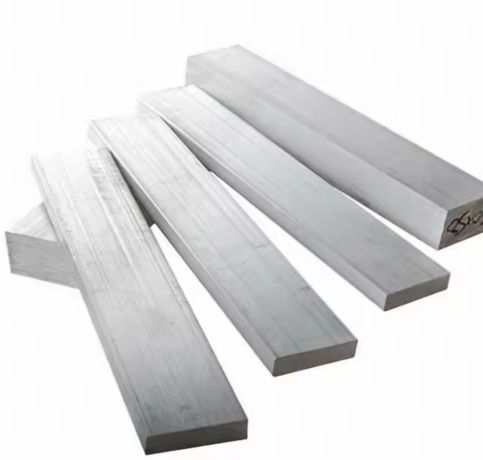

| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

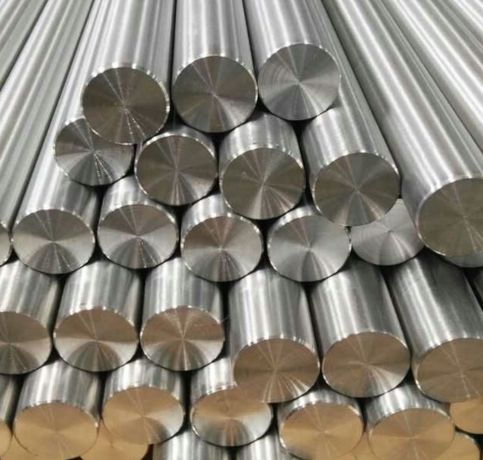

| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
These Nitronic 60 Bars and Rods are widely utilized in industries that demand superior wear and corrosion resistance. They’re perfect for valve stems, fasteners, shafts, and pump components that face friction and heavy loads. The marine and offshore sectors rely on them for hardware and fittings that are constantly exposed to seawater. In the chemical and petrochemical industries, Nitronic 60 is used for equipment that needs to endure corrosive media and high pressure. Additionally, it plays a vital role in aerospace, automotive, and power generation components, providing exceptional reliability, a long service life, and reduced maintenance in the most challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
