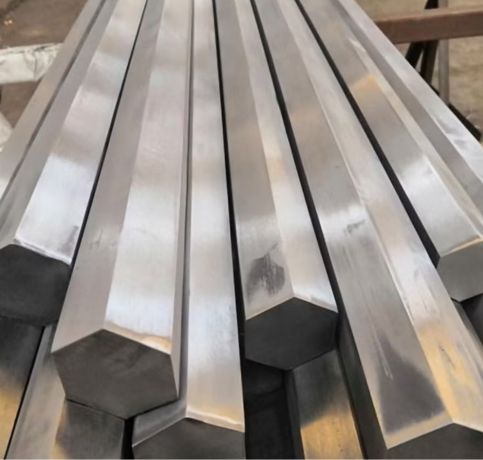

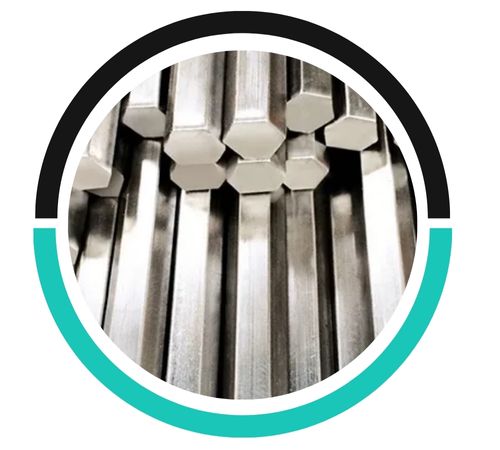

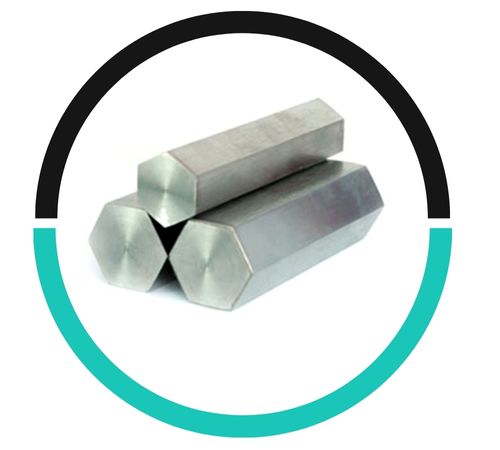

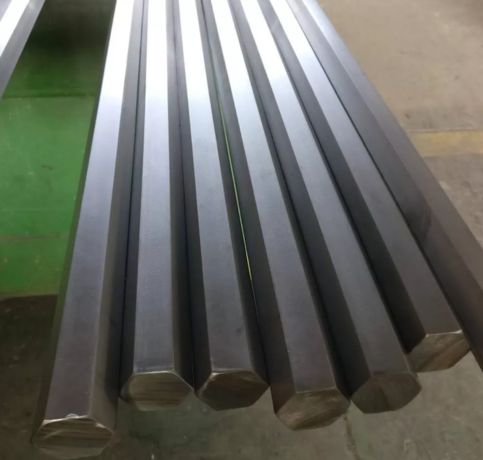

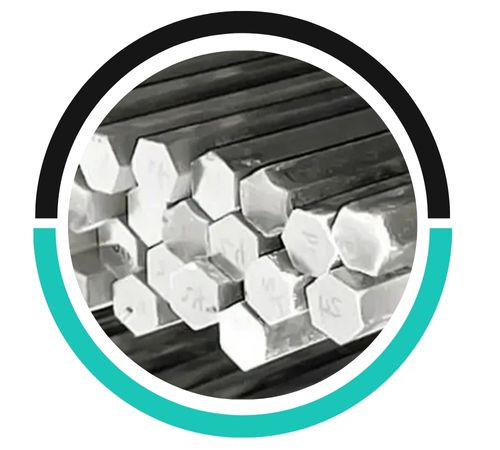

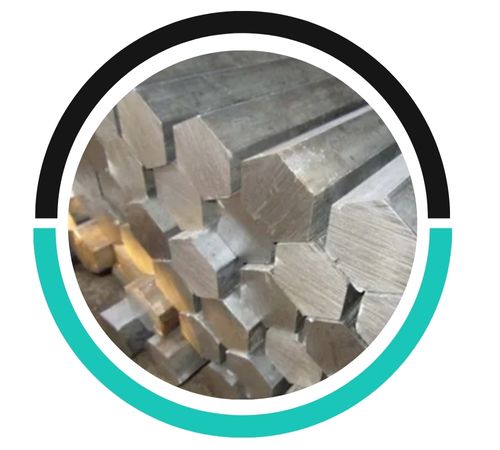

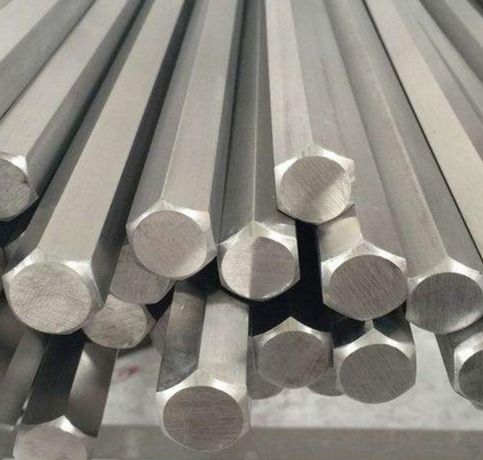

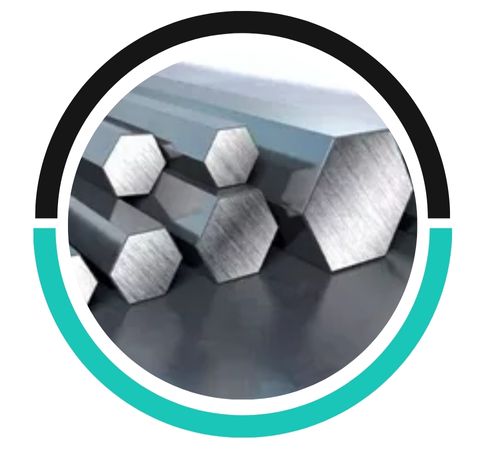

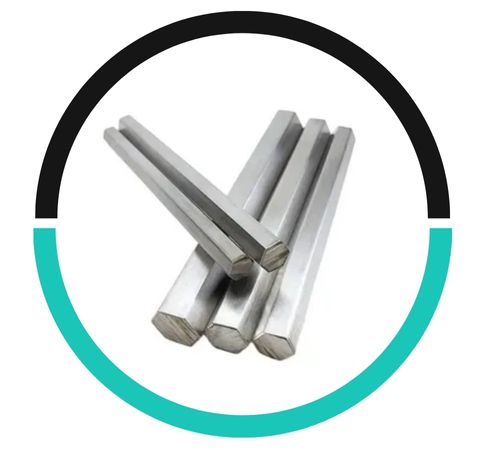

Neith Metals is a well-respected manufacturer and supplier located in Cairo, Egypt, focusing on high-quality Stainless Steel 17-4 PH Hex Bars and Rods. Renowned for their engineering expertise and product accuracy, Neith Metals provides materials that boast impressive strength, toughness, and resistance to corrosion. Their Stainless Steel 17-4 PH Hex Bars and Rods are crafted using cutting-edge manufacturing techniques to adhere to international quality standards. With outstanding mechanical performance and remarkable durability, these products are perfect for demanding sectors like aerospace, petrochemical, marine, and power generation, where reliability and the ability to withstand harsh conditions are crucial for success.
The composition of Stainless Steel 17-4 PH Hex Bars and Rods primarily includes iron, 15–17.5% chromium, 3–5% nickel, and 3–5% copper, along with trace amounts of niobium and manganese. This type of precipitation-hardening martensitic stainless steel showcases excellent mechanical properties, featuring a tensile strength ranging from 1000 to 1310 MPa, a yield strength of about 865 MPa, and an elongation of 10–15%. It strikes a perfect balance between strength, hardness, and corrosion resistance, maintaining high toughness and dimensional stability even in elevated temperatures and tough operating conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-4 PH | 0.07 max | 0.15-0.45 max | 15.00-17.50 max | 3.00-5.00 max | Bal | 1.0 | 3.0-5.0 | 0.40 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-4 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-4 PH Hex Bar and Rod can be used for structural applications due to its high strength, excellent corrosion resistance, and ability to withstand extreme environments, making it ideal for demanding conditions.
Common challenges when using Stainless Steel 17-4 PH Hex Bar include difficulties in machining due to its hardness, sensitivity to stress corrosion cracking in certain environments, and the need for precise heat treatment for optimal properties.
Stainless Steel 17-4 PH Hex Bars and Rods find extensive use in industries that demand high mechanical strength and corrosion resistance. They are frequently employed in aerospace components, chemical processing equipment, marine fittings, and parts for nuclear reactors. Their remarkable hardness and fatigue resistance make them ideal for shafts, valves, fasteners, and pump components. Additionally, these bars and rods are utilized in the paper and pulp, petrochemical, and food processing industries. Thanks to their excellent weldability and heat-treatable characteristics, Stainless Steel 17-4 PH Hex Bars and Rods are perfect for precision-engineered and high-performance industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
