Stainless Steel 347 Hollow Bar

Neith Metals, based in Cairo, Egypt, stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 347 Hollow Bars. With a reputation for precision engineering and cutting-edge manufacturing techniques, they strictly adhere to international quality standards. This commitment ensures that their stainless steel products boast excellent corrosion resistance, high-temperature strength, and remarkable durability. The Stainless Steel 347 Hollow Bars are specially designed as titanium-stabilized austenitic stainless steels, which help prevent carbide precipitation during welding and prolonged exposure to high temperatures. Neith Metals caters to various industries, including chemical processing, petrochemical, aerospace, and power generation, providing reliable, long-lasting, and high-performance stainless steel solutions for demanding industrial, structural, and engineering applications.

ASTM A276 Stainless Steel 347 Hollow Bar Egypt, SS 347 Round Bars United kingdom, Stainless Steel S34700 Hollow Bars Alexandria, Stainless Steel 1.4550 Hollow Rods Cairo, Steel 347 Hollow Bars Exporter Cairo, ASME SA479 SS 347 Hollow Rods Alexandria, 347 Stainless Steel Hollow Bar Port Said, Stainless Steel 347 Hollow Bar Manufacturer in Alexandria, Egypt.

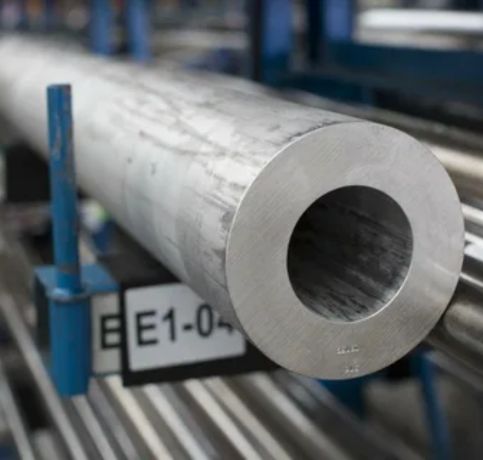

SS 347 Hexagon Hollow Bars

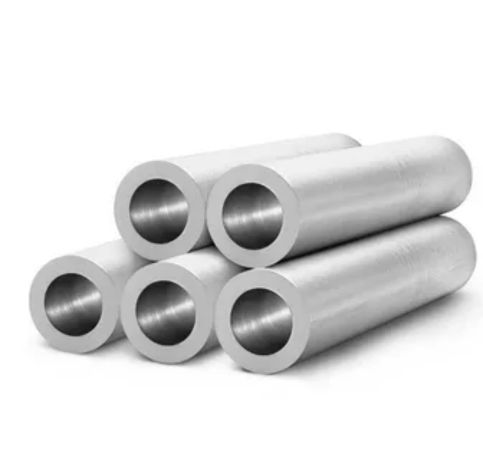

SS 347 Hollow Bar

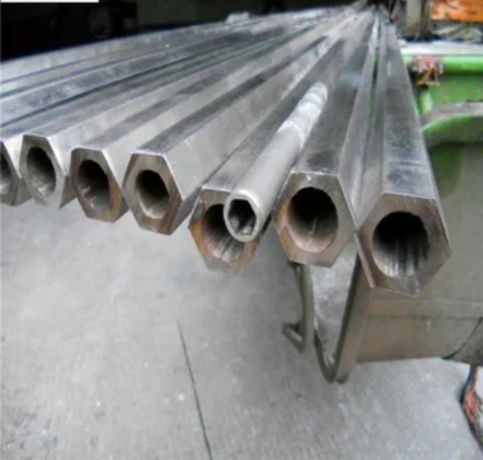

Stainless Steel 347 Hollow Hex Rod

What is Stainless Steel 347 Hollow Bar

These Hollow Bars primarily consist of chromium (17–19%), nickel (9–13%), and titanium (≥0.5%), along with trace amounts of carbon, manganese, silicon, phosphorus, and sulfur. The alloy showcases impressive tensile strength ranging from 515 to 750 MPa, yield strength between 205 and 275 MPa, and an elongation of about 40%. Stainless Steel 347 is known for its excellent oxidation and creep resistance, high-temperature stability, and superior mechanical properties, making it a great choice for welded and heat-treated components in tough environments.

Stainless Steel 347 Hollow Bars Egypt, Stainless Steel 347 Hollow Rods United kingdom, SS 347 Hollow Bar Alexandria, SUS 347 Hollow Bars and Rods Cairo, SS 347 Hollow Bar Cairo, SS 347 Hollow Bar Alexandria, SS 347 Polished Hollow Bar Port Said, Stainless Steel 347 Hollow Rods Supplier in Alexandria, Egypt.

Stainless Steel 347 Hollow Bar Specifications

Standard	ASTM A276 / A479, ASME SA276 / A479
Round Bar Size	3mm~ 800mm
Square Bar Size	4mm* 4mm ~100mm* 100mm
Flat Bar Size	2mm ~ 100mm
Hex Bar Size	2mm ~ 100mm
Angle Size	3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Stainless Steel 347 Hollow Bar cHEMICAL COMPOSITIONS

Grade	C	Mn	Si	P	S	Cr	Co + Ta	Ni	Fe
SS 347	0.08 max	2 max	0.75 max	0.045 max	0.03 max	17 – 20	10xC min 1.00 max	9 – 13	62.74

Stainless Steel 347 Hollow Bar mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1454 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %

Stainless Steel 347 Hollow Bar Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10

You Need Our Support, to Have Any Projects?

Test Certificate

Why Neith Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

STAINLESS STEEL 347 HOLLOW BAR SIZES

Stainless Steel 347 Hollow Bar Size		Chucked true to OD				Chucked true to ID
OD, mm	ID, mm	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.
32	20	31	21.9	1.220	0.862	30	21	1.185	0.827
32	16	31	18	1.220	0.709	30	17	1.181	0.669
36	25	35	26.9	1.378	1.059	34.1	26	1.343	1.024
36	20	35	22	1.378	0.866	34	21	1.339	0.827
36	16	35	18.1	1.378	0.713	33.9	17	1.335	0.669
40	28	39	29.9	1.535	1.177	38.1	29	1.500	1.142
40	25	39	27	1.535	1.063	38	26	1.496	1.024
40	20	39	22.1	1.535	0.870	37.9	21	1.492	0.827
45	32	44	33.9	1.732	1.335	43.1	33	1.697	1.299
45	28	44	30	1.732	1.181	43	29	1.693	1.142
45	20	44	22.2	1.732	0.874	42.8	21	1.685	0.827
50	36	49	38	1.929	1.496	48	37	1.890	1.457
50	32	49	34.1	1.929	1.343	47.9	33	1.886	1.299
50	25	49	27.2	1.929	1.071	47.8	26	1.882	1.024
56	40	55	42	2.165	1.654	54	41	2.126	1.614
56	36	55	38.1	2.165	1.500	53.9	37	2.122	1.457
56	28	55	30.3	2.165	1.193	53.7	29	2.114	1.142
63	50	62	51.9	2.441	2.043	61.1	51	2.406	2.008
63	45	62	47	2.441	1.850	61	46	2.402	1.811
63	40	62	42.2	2.441	1.661	60.8	41	2.394	1.614
63	36	62	38.3	2.441	1.508	60.7	37	2.390	1.457
63	32	62	34.4	2.441	1.354	60.6	33	2.386	1.299
71	56	69.9	58	2.752	2.283	68.9	57	2.713	2.244
71	45	69.9	47.3	2.752	1.862	68.6	46	2.701	1.811
71	40	69.9	42.4	2.752	1.669	68.5	41	2.697	1.614
71	36	69.9	38.5	2.752	1.516	68.4	37	2.693	1.457
75	60	73.8	62	2.906	2.441	72.8	61	2.866	2.402
75	50	73.8	52.2	2.906	2.055	72.6	51	2.858	2.008
75	40	73.8	42.5	2.906	1.673	72.3	41	2.846	1.614
80	63	78.8	65	3.102	2.559	77.8	64	3.063	2.520
80	50	78.8	52.4	3.102	2.053	77.4	51	3.047	2.008
80	45	78.8	47.5	3.102	1.870	77.3	46	3.043	1.811
80	40	78.8	42.6	3.102	1.677	77.2	41	3.039	1.614
85	67	83.7	69.1	3.295	2.720	82.6	68	3.252	2.677
85	55	83.7	57.4	3.295	2.260	82.3	56.0	3.240	2.205
85	45	83.7	47.6	3.295	1.874	82.1	46.0	3.232	1.811
90	71	88.6	73.1	3.488	2.878	87.6	72.1	3.449	2.839
90	63	88.6	65.3	3.488	2.571	87.3	64.0	3.437	2.520
90	56	88.6	58.5	3.488	2.303	87.1	57.0	3.429	2.244
90	50	88.6	52.6	3.488	2.071	87.0	51.0	3.425	2.008
95	75	93.5	77.3	3.681	3.041	92.4	76.2	3.641	2.997
95	67	93.5	69.3	3.681	2.728	92.2	68.0	3.630	2.677
95	50	93.5	52.7	3.681	2.075	91.8	51.0	3.614	2.008
100	80	98.5	82.3	3.878	3.240	97.4	81.2	3.835	3.197
100	71	98.5	73.4	3.878	2.890	97.2	72.1	3.827	2.839
100	63	98.5	65.5	3.878	2.579	97.0	64.0	3.819	2.520
100	56	98.5	58.7	3.878	2.311	96.8	57.0	3.811	2.244
106	80	104.4	82.5	4.110	3.248	103.1	81.2	4.059	3.197
106	71	104.4	73.5	4.110	2.894	103.0	72.1	4.055	2.839
106	63	104.4	65.7	4.110	2.587	102.7	64.0	4.043	2.520
106	56	104.4	58.9	4.110	2.319	102.5	57.0	4.035	2.244
112	90	110.3	92.5	4.343	3.642	109.2	91.4	4.299	3.598
112	80	110.3	82.6	4.343	3.252	108.9	81.2	4.287	3.197
112	71	110.3	73.7	4.343	2.902	108.7	72.1	4.280	2.839
112	63	110.3	65.8	4.343	2.591	108.5	64.0	4.272	2.520
118	90	116.2	92.7	4.575	3.650	114.9	91.4	4.524	3.598
118	80	116.2	82.8	4.575	3.260	114.6	81.2	4.512	3.197
118	71	116.2	73.8	4.575	2.906	114.5	72.1	4.508	2.839
118	63	116.2	66.0	4.575	2.598	114.2	64.0	4.496	2.520
125	100	123.1	102.7	4.846	4.043	121.9	101.5	4.799	3.996
125	90	123.1	92.8	4.846	3.654	121.7	91.4	4.791	3.598
125	80	123.1	82.9	4.846	3.264	121.4	81.2	4.780	3.197
125	71	123.1	74.0	4.846	2.913	121.3	72.1	4.772	2.839
132	106	130.0	108.8	5.118	4.283	128.8	107.6	5.071	4.236
132	90	130.0	93.0	5.118	3.661	128.4	91.4	5.055	3.598
132	80	130.0	83.1	5.118	3.272	128.1	81.2	5.043	3.197
132	71	130.0	74.2	5.118	2.921	121.2	72.1	5.035	2.839
140	112	137.9	115	5.429	4.528	136.6	113.7	5.378	4.476
140	100	137.9	103.1	5.429	4.059	136.3	101.5	5.366	3.996
140	90	137.9	93.2	5.429	3.669	136.1	91.4	5.358	3.598
140	80	137.9	83.3	5.429	3.280	135.8	81.2	5.346	3.197
150	125	147.7	128.1	5.815	5.043	146.5	126.9	5.768	4.996
150	106	147.7	109.3	5.815	4.303	146	107.6	5.748	4.236
150	95	147.7	98.4	5.815	3.874	145.7	96.4	5.736	3.795
150	80	147.7	83.6	5.815	3.291	145.3	81.2	5.720	3.197
160	132	157.6	135.3	6.205	5.327	156.3	134	6.154	5.276
160	122	157.6	125.4	6.205	4.937	156	123.8	6.142	4.874
160	112	157.6	115.5	6.205	4.547	155.8	113.7	6.134	4.476
160	90	157.6	94.0	6.205	3.701	155.2	91.4	6.110	3.598
170	140	167.4	143.5	6.591	5.650	166	142.1	6.535	5.594
170	130	167.4	133.6	6.591	5.260	165.8	132	6.528	5.197
170	128	167.4	131.6	6.591	5.181	165.7	130	6.524	5.118

Stainless Steel 347 Hollow Bar Types

ASTM A276 Stainless Steel 347 Hollow Bar Egypt, SS 347 Round Bars United kingdom, Stainless Steel S34700 Hollow Bars Alexandria, Stainless Steel 1.4550 Hollow Rods Cairo, Steel 347 Hollow Bars Exporter Cairo, ASME SA479 SS 347 Hollow Rods Alexandria, 347 Stainless Steel Hollow Bar Port Said, Stainless Steel 347 Hollow Bar Manufacturer in Alexandria, Egypt.

Frequently Asked Questions (FAQ)

What are the primary advantages of using SS 347 hollow bars in high-temperature applications?

The primary advantages of using SS 347 hollow bars in high-temperature applications include excellent resistance to intergranular corrosion, enhanced heat resistance, and stability in extreme conditions. These properties make it ideal for use in heat exchangers, reactors, and furnace components.

How does the addition of columbium (niobium) in SS 347 enhance its performance in corrosive environments?

The addition of columbium (niobium) in SS 347 improves its resistance to intergranular corrosion, particularly after welding. It stabilizes the steel's microstructure, preventing carbide precipitation at grain boundaries, and enhances overall corrosion resistance in aggressive, high-temperature environments.

In which industries is SS 347 hollow bar most commonly used, and what are its typical applications?

SS 347 hollow bars are commonly used in the chemical processing, aerospace, power generation, and petrochemical industries. Typical applications include heat exchangers, reactor vessels, piping systems, and furnace components, where resistance to high temperatures and corrosion is essential.

Stainless Steel 347 Hollow Bar Uses

Neith Metals’ Stainless Steel 347 Hollow Bars are extensively utilized in high-temperature and corrosive settings. They’re perfect for crafting heat exchangers, boiler tubes, furnace components, chemical processing equipment, and exhaust systems. Additionally, these bars find their place in aerospace, petrochemical, and power generation machinery, where dimensional stability, long-term durability, and resistance to thermal fatigue are essential. The hollow design not only enhances weight efficiency but also allows for specialized industrial applications. Overall, Stainless Steel 347 Hollow Bars deliver dependable, high-performance solutions for industrial and engineering projects that face extreme conditions.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
