Neith Metals, having its headquarters in Alexandria, Egypt, is a well-known manufacturer, supplier, and exporter of superior quality Titanium Grade 11 Bars and Rods. Keeping in mind precision and performance, the company delivers products of different shapes, sizes, and specifications to cater to varying industrial demands. Renowned for exceptional strength and corrosion resistance, these bars and rods are most suitable for challenging industrial and commercial use. Neith Metals takes care that each product is made with quality and customer satisfaction in mind, catering to a large number of industries with dependable, rugged, and high-performance titanium solutions for long-term applications under harsh environments.
Titanium Grade 11 Bars and Rods contain about 99% titanium, with 0.12%–0.25% palladium (Pd) as the alloying element. This addition confers resistance to corrosion in oxidizing and weakly reducing conditions. The alloy is highly ductile, weldable, and strong, and it has improved crevice and pitting corrosion resistance. It possesses a good strength-to-weight ratio and thermal conductivity, and it is ideal for use under very harsh conditions. Titanium Grade 11 combines lightweight characteristics with durability, providing exceptional mechanical and chemical stability in industrial operations.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

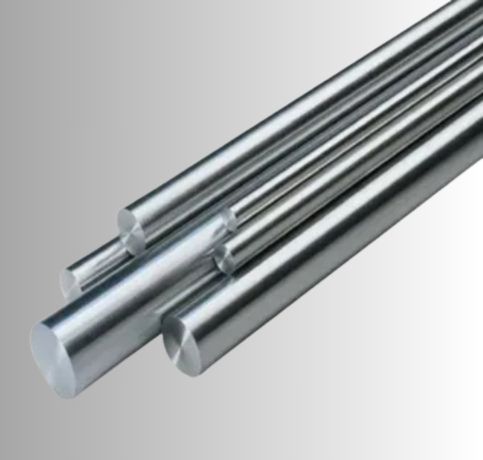

| Round bar size : | Diameter: 3-~800mm |

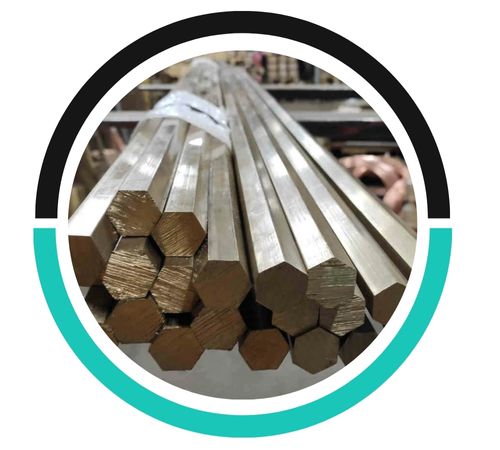

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

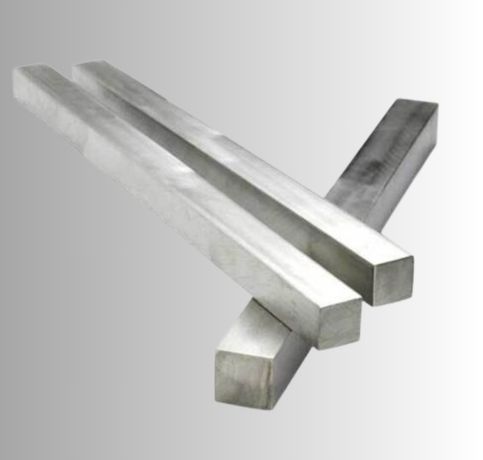

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium Grade 11 Bars and Rods have extensive application in corrosion-resistant and high-strength-demanding industries. Chemical processing plants, marine hardware, heat exchangers, and desalination units are all suitable places for these bars and rods because they offer superior resistance against oxidizing and reducing environments. Aerospace applications involve these bars and rods for lightweight yet robust components, as well as in medical applications for biocompatible implants. Besides, they are utilized in power generation and marine engineering sectors. They are durable, weldable, and can withstand tough conditions, thus being critical in demanding industrial and commercial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
