Neith Metals based in Alexandria, Egypt, is a prominent supplier, and Dealer of Titanium Grade 12 Bars and Rods, catering to industries worldwide. Known for their expertise in titanium products, Neith Metals offers high-quality bars and rods designed to meet the rigorous demands of industrial applications. Titanium Grade 12 Bars and Rods are celebrated for their exceptional corrosion resistance, especially in oxidizing and mildly reducing environments, along with superior fatigue strength and fracture toughness. These properties make them ideal for applications in the marine, chemical processing, and power generation industries, ensuring durability and reliability under challenging conditions.
Titanium Grade 12 Bars and Rods contain about 98.9% titanium, together with 0.3% molybdenum (Mo) and 0.8% nickel (Ni). This combination is ideal for offering good resistance to corrosion, crevice attack, and pitting in oxidizing and mildly reducing conditions. The material contains good tensile strength, excellent weldability, fair ductility, and great toughness even at high temperatures. These mechanical characteristics of Titanium Grade 12 render it perfect for applications that involve longevity, stability, as well as endurance against rigorous mechanical and chemical conditions.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

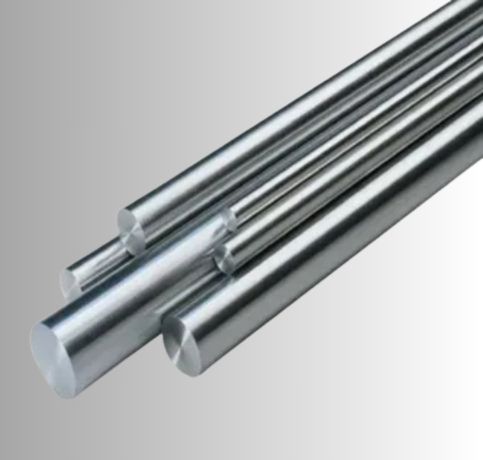

| Round bar size : | Diameter: 3-~800mm |

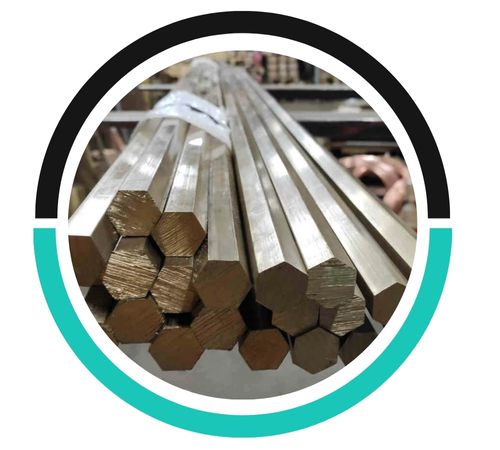

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

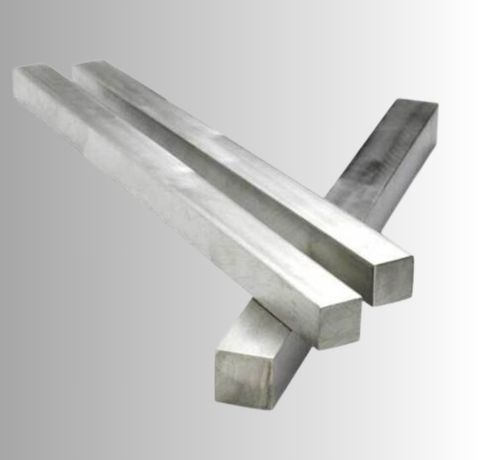

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
Titanium Grade 12 Rods and Bars are widely applied to industries where corrosion resistance and strength are a must. Some common uses are chemical processing equipment, heat exchangers, condensers, and sea water-exposed marine components. They are also applied to power generation plants, especially for condenser tubing as well as desalination units. Aerospace, oil & gas industries also use these bars for high-strength but low-weight components. Their better weldability, resistance to pitting and crevice corrosion, and durability make them extremely dependable for harsh environments and long-term industrial life.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
