Neith Metals is a well-respected manufacturer and supplier located in Cairo, Egypt, specializing in top-notch Titanium Grade 3 Bars and Rods. These products are celebrated for their remarkable strength, durability, and resistance to corrosion, making them perfect for tough industrial applications. Neith Metals takes pride in ensuring that every item meets international standards through meticulous engineering and thorough quality testing. With a strong focus on innovation and excellence, the company serves a variety of sectors, including aerospace, chemical processing, and marine industries, providing products that blend outstanding mechanical performance with reliability and longevity, even in challenging conditions.
Titanium Grade 3 Bars and Rods are primarily made up of titanium (99.2%), with minor amounts of iron (≤0.30%) and oxygen (≤0.35%). This grade strikes a great balance between moderate strength and excellent corrosion resistance. It boasts a tensile strength of about 620 MPa and a yield strength of roughly 480 MPa, along with good formability and weldability. The material shows exceptional resistance to oxidizing environments and seawater, making it a fantastic choice for medium-strength applications where both performance and chemical resistance are vital.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

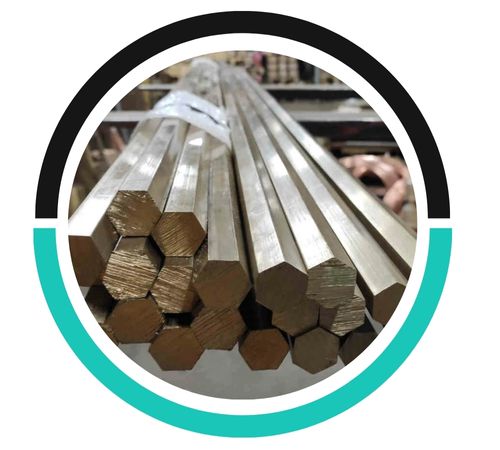

| Hex Bar size : | 2-100mm A/F |

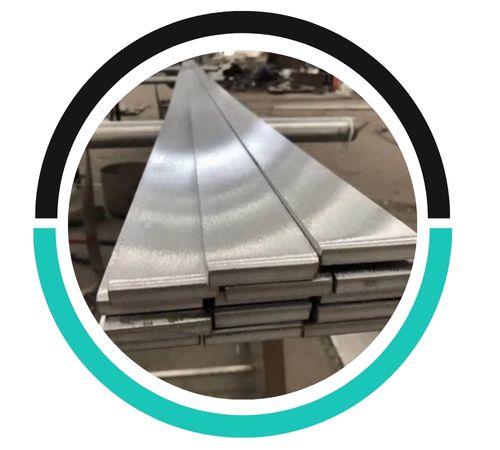

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

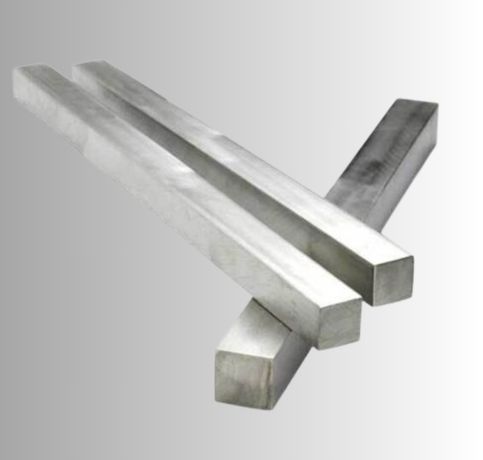

| Square bar size : | 4 to 100mm |

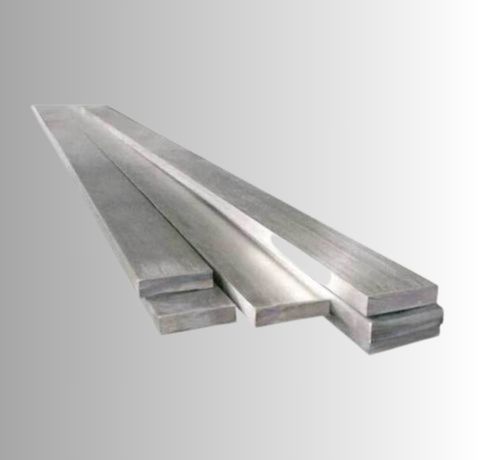

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

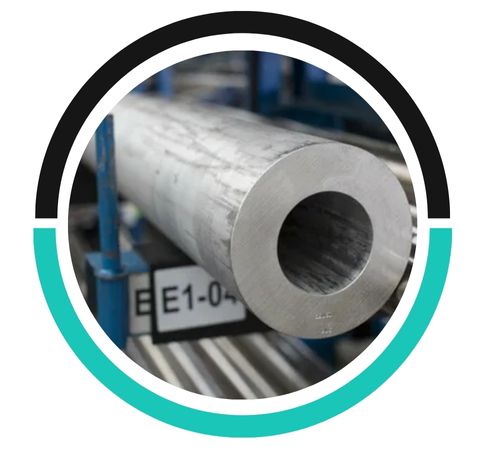

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |

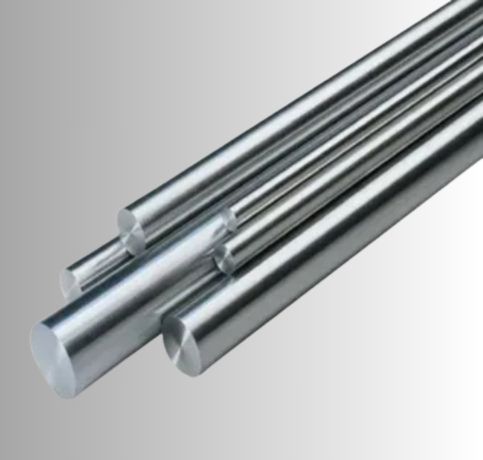

Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@neithmetals.com
You’ll find Titanium Grade 3 Bars and Rods used across various industries that require high strength, low weight, and superior corrosion resistance. They’re commonly found in the aerospace sector for airframe and engine components, in the chemical processing industry for heat exchangers and reactors, and in the marine field for seawater-resistant fittings. Additionally, they play a role in medical implants, power generation, and desalination plants, where durability and biocompatibility are crucial. Their versatility, combined with excellent mechanical and anti-corrosive properties, makes Titanium Grade 3 Bars and Rods a dependable choice for critical engineering and structural applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
